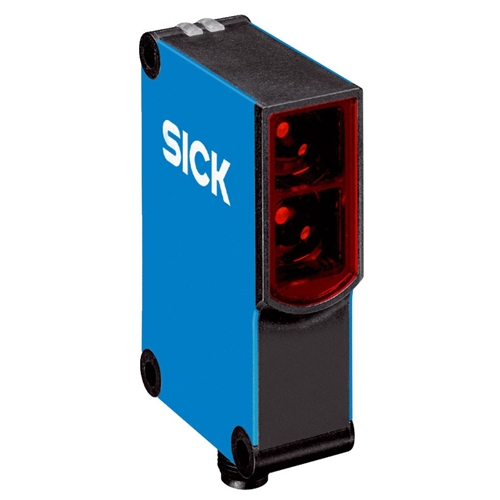

WTB27-3S1511


SICK (1027762) SENSOR

Sick

Your cart total:

.

Checkout

Discontinued

1027762






































Manufacturer:SICK
Model:WTB27-3S1511
Height (mm):80.6
Width (mm):24.6
Depth (mm):54
Weight (kg):0.2
Series:Photoelectric Sensors
Sensor/Detection Principles:Photoelectric proximity sensor, background suppression
Housing design:Rectangular
Sensing range max:30 mm … 1,600 mm
Sensing range:100 mm … 1,600 mm
Type of light:Infrared light
Light source:LED
Wave length:880 nm
Sensitivity Adjustment:Potentiometer
Light spot size (distance):Ø 25 mm (800 mm)
Supply voltage:24 V AC/DC … 240 V AC/DC
Power consumption:< 2.5 VA
Output type:Relay
Output function:Change-over contacts
Switching mode:Light switching
Output characteristic:Electrically isolated
Switching current (switching voltage):0.11 A (250 V DC), 3 A (24 V DC), 3 A (250 V AC)
Response time:< 10 ms
Switching frequency:10 Hz
Connection type:Cable, 5-wire, 2 m
Cable material:PVC
Circuit protection:A, C
Protection class:II
Housing material:ABS, Plastic
Optics material:PMMA
Enclosure rating:IP 66, IP 67
Usage category:AC-15, DC-13, According to EN 60947-1
Ambient operating temperature:-40 °C … 60 °C
Ambient storage temperature:-40 °C … 75 °C
UL File Number:NRKH.E181493 & NRKH7.E181493
