WT160F460

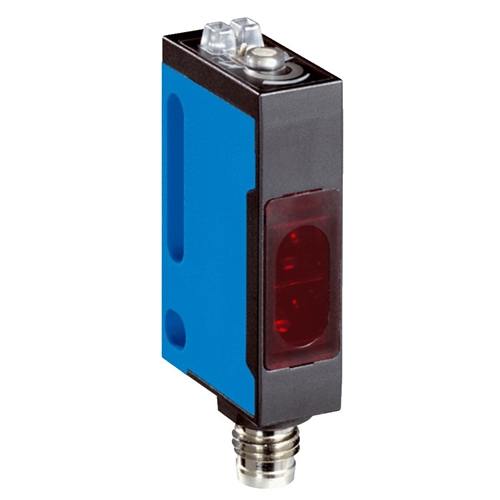

Sick (WT160-F460) Photoelectric Proximity Sensor

Sick

Your cart total:

.

Checkout

Discontinued

6022806





































Manufacturer:SICK
Model:WT160-F460
Height (mm):38
Width (mm):11
Depth (mm):23
Weight (kg):0.02
Series:Photoelectric Sensors
Housing design:Rectangular
Housing design:Vertical
Sensing range max:0 mm … 115 mm
Sensing range:0 mm … 115 mm
Type of light:Red light
Light source:LED
Light spot (distance):100 mm (100 mm)
Wave length:680 nm
Sensitivity Adjustment:Potentiometer, 2 rotations
Angle of dispersion:Ca. 50°
Supply voltage:DC 10 … 30 V
Ripple:± 10 %
Power consumption:< 25 mA
Output type:PNP
Output function:Q
Switching mode:Light/dark-switching via rotary switch
Output characteristic:Open collector
Signal voltage PNP HIGH/LOW:Vs - 1.8 V/approx. 0 V
Output current Imax:100 mA
Response time:< 0.5 ms
Switching frequency:1,000 Hz
Connection type:Connector M8, 4-pin
Circuit protection:VS connections reverse-polarity protected / In-/outputs short-circuit protected / Interference suppression / Outputs overcurrent and short-circuit protected
Housing material:PBT
Optics material:PMMA
Enclosure rating:IP 67, IP 69K
Ambient operating temperature:-25 °C … 55 °C
Ambient storage temperature:-40 °C … 70 °C

No extended details available.
