UNO1251GA0AE


ADVANTECH IOT GATEWAY TI A8 ARM CORTEX PROCESSOR

1 X USB, 2 X LAN, 3 X COMM., 1 X CAN

Advantech

Your cart total:

.

Checkout

0

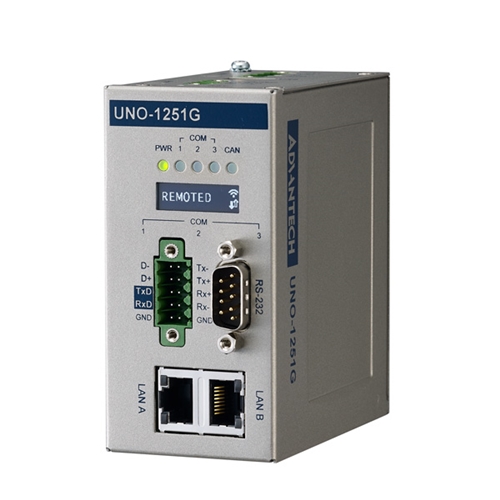

UNO-1251G-A0AE





































Brand:Advantech
Family:UNO
Series:1000
Type:Control Cabinet PC
Mfr. Part No.:UNO-1251G-A0AE
Description:Advantech Control cabinet PC with ARM Cortex A8 processor; built-in 256MB memory, 1GB SLC MicroSD, WEC7
Supply Voltage:10 - 36V
Supply Voltage Type:DC
Power Consumption (Typical):5W
Power Consumption (Max):9W
Processor:RISC 32bit, 600Mhz (ARM Cortex A8)
Backup Memory:FRAM 128kB
Memory:Oboard DDR2 256MB 166Mhz (Optional 512Mb)
LED Indicators:Power, Com1-3(Tx/Rx), and CAN(Tx/Rx)
Storage:Bootloader and Image: 1 x microSD card slot (Built-in)
External Storage: 1x microSD card slot
Expansion:1 x Full-size mPCIe slot (USB2.0 signal only)
No. of HW-interfaces industrial Ethernet:2
No. of HW-interfaces RS-232:1
No. of HW-interfaces RS-422:1
No. of HW-interfaces RS-485:1
No. of HW-interfaces USB:1
No. of HW_interfaces SIM:1
Supporting protocol for TCP/IP:Yes
Supporting protocol for CAN:Yes
Power Connector:1 x 4 Pin terminal block
Operating Temp. min. (Deg C):-20
Operating Temp. max. (Deg C):60
Form Factor:Micro Size
Enclosure:Aluminium Housing
Din Rail Mounting:Yes
OS Support:Windows, Embedded Compact 7 (WEC7), Embedded Linux (kernel v2.6.37)
Width (mm):50
Depth (mm):90
Height (mm):100
Weight (kg):0.4

No extended details available.
