E2EX9B1TL12M1

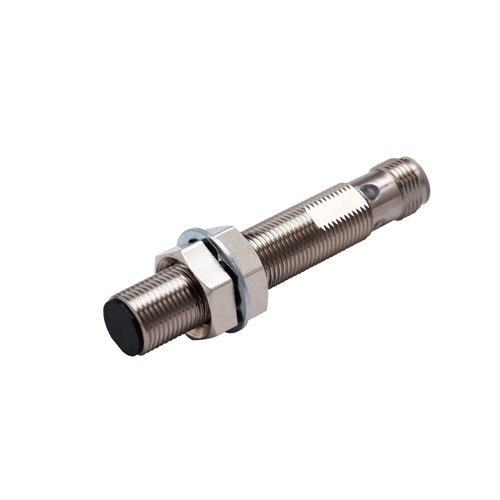

Omron Proximity sensor, inductive, nickel-brass,

long body, M12, shielded, 9 mm, DC, 3-wi re, PNP NO, IO-Link COM3, M12 connector

Omron

Your cart total:

.

Checkout

0

E2E-X9B1TL12-M1






































Brand:Omron
Product Type:Inductive Proximity Switch
Manf. Part No.:E2E-X9B1TL12-M1
Description:Proximity sensor, inductive, nickel-brass, long body, M12, shielded, 9 mm, DC, 3-wire, PNP NO, IO-Link COM3, M12 connector
Sensor Diameter:12mm
Switching Distance:9mm
Suitable for Safety Functions:No
Switch Function:Normally Open
Type of Switching Output:PNP
Electrical Connection:Connector M12
No. of Semiconductor Outputs with Signalling Function:1
No. of Contact Energized Outputs with Signalling Function:0
No. of Protected Semiconductor Outputs:0
No. of Protected Contact Energized Outputs:0
Actuation Type:Metallic Target
Type of Interface:IO-Link
Type of Interface for Safety Communication:None
Housing Construction:Cylinder, screw-thread
Housing Coating:Nickel-plated
Cascadable:No
Category According to EN 954-1:1
SIL According to IEC 61508:None
Performance Level acc. to EN ISO 13849-1:None
Max. Output Current at Protected Output:50mA
Supply Voltage:10V - 30V
Rated Control Voltage Us at AC 50HZ:
Rated Control Voltage Us at AC 60HZ:
Rated Control Voltage Us at DC:10V - 30V
Voltage Type:DC
Switching Frequency:700Hz
Monitoring Function for ownstream Switching Devices:No
Housing Material:Metal
Compression Resistant:No
Explosion Safety Category for Gas:None
Explosion Safety Category for Dust:None
GTIN:4549734470605

No extended details available.
