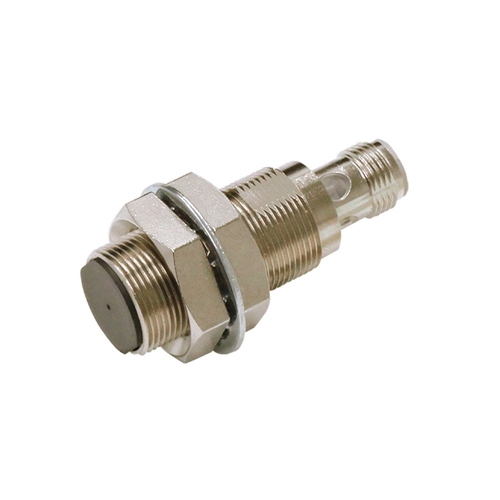

E2EX14B1T18M1


Omron proximity sensor, inductive, nickel-brass,

short body, M18, shielded, 14 mm, DC, 3- wire, PNP NO, IO-Link COM3, M12 connecto r

Omron

Your cart total:

.

Checkout

0

E2E-X14B1T18-M1






































Brand:Omron
Product Type:Inductive Proximity Switch
Manf. Part No.:E2E-X14B1T18-M1
Description:Proximity sensor, inductive, nickel-brass, short body, M18, shielded, 14 mm, DC, 3-wire, PNP NO, IO-Link COM3, M12 connector
Sensor Diameter:18mm
Switching Distance:14mm
Suitable for Safety Functions:No
Switch Function:Normally Open
Type of Switching Output:PNP
Electrical Connection:Connector M12
No. of Semiconductor Outputs with Signalling Function:1
No. of Contact Energized Outputs with Signalling Function:0
No. of Protected Semiconductor Outputs:0
No. of Protected Contact Energized Outputs:0
Actuation Type:Metallic Target
Type of Interface:IO-Link
Type of Interface for Safety Communication:None
Housing Construction:Cylinder, screw-thread
Housing Coating:Nickel-plated
Cascadable:No
Category According to EN 954-1:1
SIL According to IEC 61508:None
Performance Level acc. to EN ISO 13849-1:None
Max. Output Current at Protected Output:50mA
Supply Voltage:10V - 30V
Rated Control Voltage Us at AC 50HZ:
Rated Control Voltage Us at AC 60HZ:
Rated Control Voltage Us at DC:10V - 30V
Voltage Type:DC
Switching Frequency:350Hz
Monitoring Function for ownstream Switching Devices:No
Housing Material:Metal
Compression Resistant:No
Explosion Safety Category for Gas:None
Explosion Safety Category for Dust:None
GTIN:4549734475570

No extended details available.
