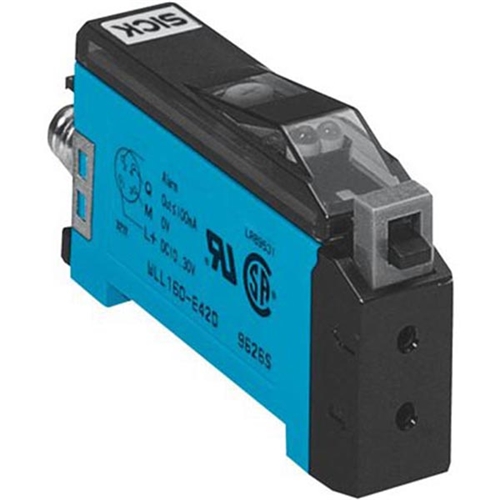

SICK WLL 160-F420 PHOTOELECTRIC SWITCH

Sick

Your cart total:

.

Checkout

Discontinued

6009990








































Manufacturer:SICK
Model:WLL160-F420
Height (mm):38.5
Width (mm):12
Depth (mm):59
Weight (kg):0.03
Series:Photoelectric Sensors
Sensor/Detection Principles:Through-beam photoelectric sensor
Housing design:Rectangular
Sensing range max:0 mm … 70 mm (Proximity system)
Sensing range:0 m … 2 m
Fibre-optic cable:LL3-DB01
Type of light:Red light
Light source:LED
Light spot (distance):Depending on the scanning range
Wave length:660 nm
Time delay:Selectable via slide switch
Time type:Switch-off delay TOFF 0 … 100 ms
Angle of dispersion:Ca 65°
Supply voltage:DC 10 … 30 V
Ripple:± 10 %
Power consumption:< 30 mA
Output type:PNP
Output function:Q
Switching mode:Light/dark-switching via slide switch
Output characteristic:Open collector
Output current Imax:100 mA
Response time:< 0.35 ms
Switching frequency:1,500 Hz
Connection type:Connector M8, 4-pin
Circuit protection:VS connections reverse-polarity protected / In-/outputs short-circuit protected / Interference suppression / Outputs overcurrent and short-circuit protected
Housing material:ABS
Enclosure rating:IP 66
Ambient operating temperature:-25 °C … 55 °C
Ambient storage temperature:-40 °C … 70 °C
Alarm output:Contamination message, 100mA, static
UL File Number:NRNT2.E128350 & NRNT8.E128350
Discontinued:The product has been discontinued.
