3070341

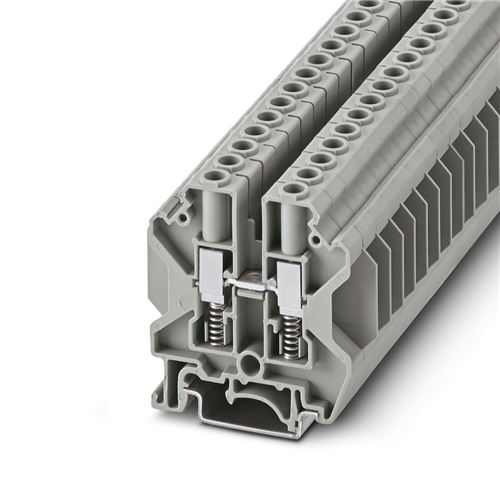

PHOENIX USST 6 FEED THROUGH MODULAR

TERMINAL BLOCK

Your cart total:

.

Checkout

0

3070341





















Cross Section (mm):0.2 - 10
Number Of Levels :1
Number Of Connections:2
Insulating Material:PA
Max Load Current (A):57
Rated Surge Voltage (kV):6
Nominal Current (A):41
Nominal Voltage (V):500
Connection Method:Screw connection with spring support
AWG:24 - 8
Colour:Grey
Mounting Type:NS 35/7.5, NS 35/15, NS 32
Make:Phoenix Contact
Series:USST 6
Product Range :Feed-through terminal block
Height (mm):57.3
Width (mm):8.2
Length (mm):52
Weight (kg):0.01811

No extended details available.
