1044850

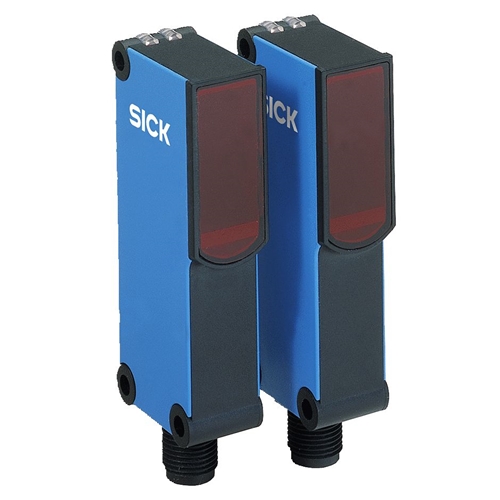

SICK W14-2 THROUGH BEAM PHOTO ELECTRIC

SENSOR

Sick

Your cart total:

.

Checkout

Discontinued

1044850




































Manufacturer:SICK
Model:WS/WE14-2P410S01
Height (mm):75.5
Width (mm):17.6
Depth (mm):33.5
Weight (kg):0.04
Series:Photoelectric Sensors
Sensor/Detection Principles:Through-beam photoelectric sensor
Housing design:Slim
Sensing range max:0 m … 20 m
Sensing range:0 m … 15 m
Type of light:Infrared light
Light source:LED
Light spot (distance):950 mm (15 m)
Wave length:645 nm
Sensitivity Adjustment:Potentiometer, 1-turn
Supply voltage:10 V DC … 30 V DC
Ripple:5 V pp
Power consumption, sender:45 mA
Power consumption, receiver:35 mA
Output type:PNP
Output function:Complementary
Switching mode:Light/dark-switching
Output current Imax:< 100 mA
Response time:< 0.5 ms
Switching frequency:1,000 Hz
Connection type:Connector M12, 4-pin
Number of cores:4
Circuit protection:A, C, D
Housing material:ABS
Optics material:PMMA
Enclosure rating:IP 67
Ambient operating temperature:-40 °C … 60 °C
Ambient storage temperature:-40 °C … 75 °C

No extended details available.
