1043783

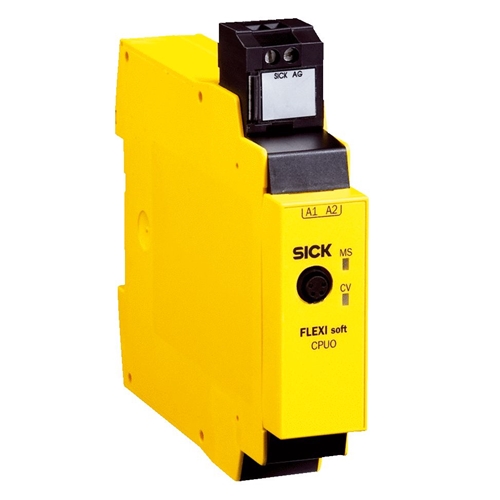

SICK SAFETY CONTROLLER FLEXI SOFT, MAIN MODULE

Sick

Your cart total:

.

Checkout

10

1043783





































Manufacturer:SICK
Model:FX3-CPU000000
Height (mm):96.5
Width (mm):22.5
Depth (mm):120.8
Weight (kg):0.111
Series:Safety Controllers
Safety integrity level:SIL3 (IEC 61508), SILCL3 (IEC 62061)
Category:Category 4 (EN ISO 13849)
Performance level:PL e (EN ISO 13849)
PFHd:1.07 * 1E-09
TM (mission time):20 a
Reset/restart:Manual/automatic/configurable
External device monitoring (EDM):Yes
Muting:Yes
Operating mode switching:Yes
Number of logical connections:255
Logical functions:AND, NOT, OR, XNOR, XOR
Application-specific logical functions:Operating mode switch, Muting, Emergency stop, Presses, Two-hand control
Supply voltage:24 V DC (16.8 V DC … 30 V DC)
Type of supply voltage:PELV or SELV (the current of the power supply that powers the main unit must be limited to a maximum of 4 A, either through the power supply itself or a fuse.)
Power consumption:2.5 W
Protection class:EN 61140
Short-circuit protection:4 A gG
Switch-on time of inputs:18 s
Configuration interface:Internal bus (FLEX BUS +)
Enclosure rating terminals:IP 20
Protection class housing:IP 40
Ambient operating temperature:-25 °C ... 55 °C
Storage temperature:-25 °C ... 70 °C
Air humidity:10 % ... 95 %, non-condensing
Climate conditions according to:EN 61131-2 (55 °C operating temperature, 95% rel. humidity)
Electromagnetic compatibility (EMC):EN 61000-6-2, EN 55011, EN 61131-2 (zone B)
Vibration resistance:5 Hz … 500 Hz (EN 61131-2)
Connection type:Plug
