1040438

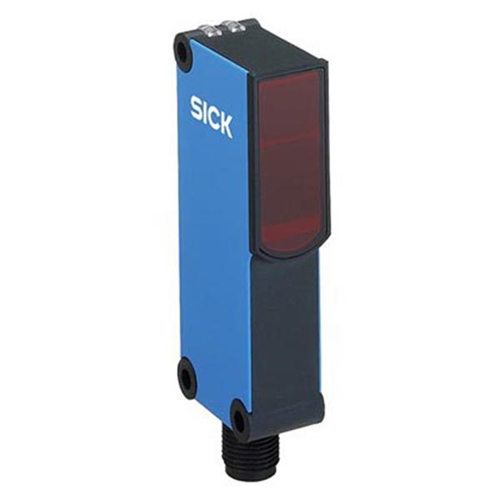

SICK WT18-3P931-S18

PHOTO ELECTRIC SENSOR

Sick

Your cart total:

.

Checkout

Discontinued

1040438


































Manufacturer:SICK
Model:WT18-3P931S18
Height (mm):75.5
Width (mm):17.6
Depth (mm):33.5
Weight (kg):0.09
Series:Photoelectric Sensors
Sensor/Detection Principles:Photoelectric proximity sensor, background suppression
Housing design:Slim
Sensing range max:10 mm … 600 mm
Sensing range:50 mm … 600 mm
Type of light:Visible red light
Light source:LED
Light spot (distance):15 mm (300 mm)
Wave length:675 nm
Teach-in:Single teach-in button
Sensitivity Adjustment:Adjustable Teach
Supply voltage:10 V DC … 30 V DC
Ripple:< 5 Vpp
Power consumption:40 mA
Output type:PNP
Switching mode:Dark switching
Output current Imax:100 mA
Response time:< 700 µs
Switching frequency:700 Hz
Connection type:Cable with plug, M12, 4-pin
Cable material:PVC
Circuit protection:A, C, D
Housing material:ABS
Optics material:PMMA
Ambient operating temperature:-40 °C … 60 °C
Ambient storage temperature:-40 °C … 75 °C

No extended details available.
