1029213

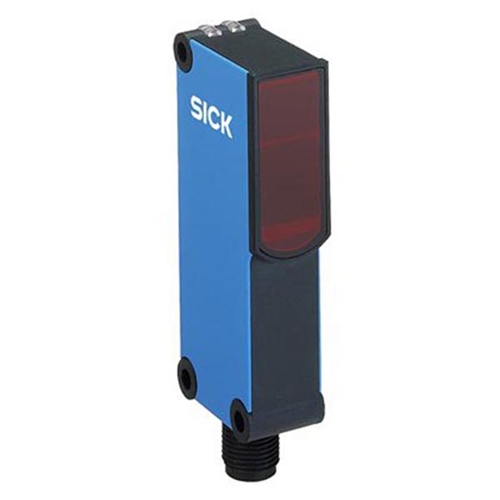

Sick Proximity Switch

Sick

Your cart total:

0 Items €0.00

Checkout

Discontinued

Specification

1029213

































Manufacturer:SICK
Model:WT18-3P420S12
Height (mm):75.5
Width (mm):17.6
Depth (mm):33.5
Weight (kg):0.04
Series:Photoelectric Sensors
Sensor/Detection Principles:Photoelectric proximity sensor, background suppression
Housing design:Slim
Sensing range max:10 mm … 700 mm
Sensing range:50 mm … 700 mm
Type of light:Infrared light
Light source:LED
Wave length:870 nm
Sensitivity Adjustment:Potentiometer, 4-turn
Light spot size (distance):Ø 30 mm (600 mm)
Supply voltage:10 V DC … 30 V DC
Ripple:< 5 Vpp
Power consumption:55 mA
Output type:PNP
Switching mode:Light/dark-switching
Output current Imax:100 mA
Response time:< 700 µs
Switching frequency:700 Hz
Connection type:Connector M12, 4-pin
Circuit protection:A, C, D
Housing material:ABS
Optics material:PMMA
Enclosure rating:IP 67
Ambient operating temperature:-40 °C … 60 °C
Ambient storage temperature:-40 °C … 75 °C

No extended details available.
