1023977

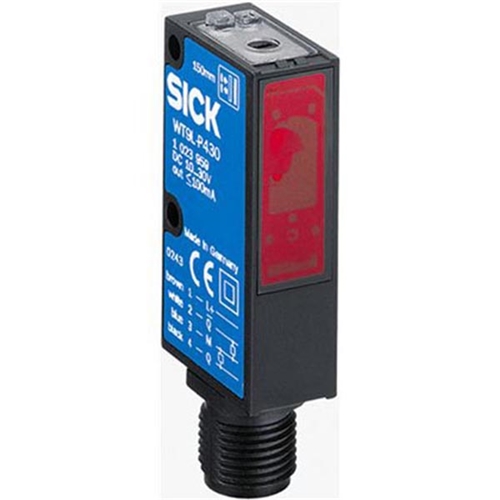

SICK PHOTOELECTRIC PROX SWITCH(WT9L-P330)

Sick

Your cart total:

.

Checkout

Discontinued

1023977



































Manufacturer:SICK
Model:WT9L-P330
Height (mm):40
Width (mm):12
Depth (mm):22
Weight (kg):0.02
Series:Photoelectric Sensors
Sensor/Detection Principles:Photoelectric proximity sensor, background suppression
Housing design:Rectangular
Sensing range:30 mm … 150 mm
Type of light:Visible red light
Light source:Laser
Laser class:2
Sensitivity Adjustment:Potentiometer, 7-turn
Light spot size (distance):Ø 0.5 mm (60 mm)
Supply voltage:10 V DC … 30 V DC
Ripple:< 5 Vpp
Power consumption:< 35 mA
Output type:PNP
Output function:Complementary
Switching mode:Light/dark-switching
Signal voltage PNP HIGH/LOW:Approx. VS -2.0 V/0 V
Output current Imax:< 100 mA
Response time:< 0.6 ms
Switching frequency:± 1,000 Hz
Connection type:Connector M8, 4-pin
Circuit protection:A, B, C
Protection class:III
Housing material:ABS, Plastic
Enclosure rating:IP 67
Ambient operating temperature:-10 °C … 50 °C
Ambient storage temperature:-25 °C … 70 °C
Discontinued:The product has been discontinued. Replacement product: WTB9L-3P2261

No extended details available.
