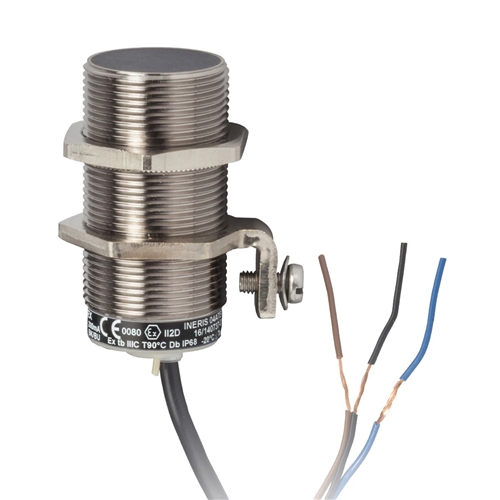

XSAV12373EX


Telemecanique Sensors Rotation Monitoring

Hazardarea, M30, Sn10mm, 120..3000c/Mn, Nc, Cable 2m

Telemecanique Sensors

Your cart total:

.

Checkout

0

XSAV12373EX








































Brand:Telemecanique
Product Type:Inductive Proximity Switch
Manf. Part No.:XSAV12373EX
Length of Sensor:81mm
Sensor Diameter:30mm
Mounting Style:Concise
Switching Distance:10mm
Suitable for Safety Functions:No
Switch Function:Normally Closed
Type of Switching Output:PNP
Electrical Connection:Cable
No. of Semiconductor Outputs with Signalling Function:1
No. of Contact Energized Outputs with Signalling Function:0
No. of Protected Semiconductor Outputs:0
No. of Protected Contact Energized Outputs:0
Actuation Type:Other
Type of Interface:None
Type of Interface for Safety Communication:None
Housing Construction:Cylinder, screw-thread
Housing Coating:Nickel-plated
Cascadable:No
Category According to EN 954-1:1
SIL According to IEC 61508:None
Performance Level acc. to EN ISO 13849-1:None
Max. Output Current at Protected Output:200mA
Supply Voltage:12V - 48V
Rated Control Voltage Us at AC 50HZ:
Rated Control Voltage Us at AC 60HZ:
Rated Control Voltage Us at DC:12V - 48V
Voltage Type:DC
Switching Frequency:800Hz
Monitoring Function for ownstream Switching Devices:No
Housing Material:Metal
Compression Resistant:No
Explosion Safety Category for Gas:Other
Explosion Safety Category for Dust:Other
Interference Resistance to Magnetic Fields:Immune against magnetic DC- and AC-field
GTIN:3389110955521
