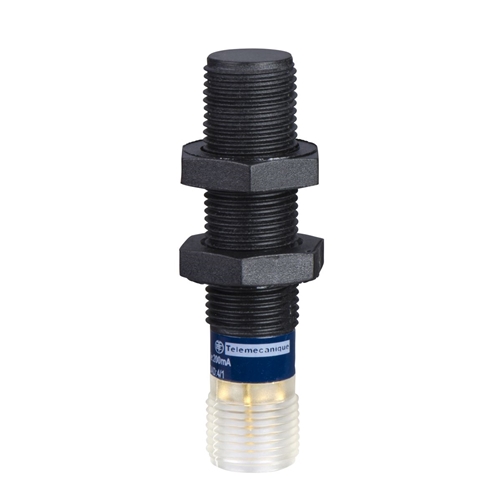

XS4P12KP340D


Telemecanique Sensors Inductive Sensor Xs4

M12,L61mm, Pps, Sn4mm, 12..24vdc, M12

Telemecanique Sensors

Your cart total:

.

Checkout

0

XS4P12KP340D








































Brand:Telemecanique
Product Type:Inductive Proximity Switch
Manf. Part No.:XS4P12KP340D
Length of Sensor:61mm
Sensor Diameter:12mm
Mounting Style:Not flat
Switching Distance:4mm
Suitable for Safety Functions:No
Switch Function:Programmable/Configurable
Type of Switching Output:PNP/NPN
Electrical Connection:Cable
No. of Semiconductor Outputs with Signalling Function:1
No. of Contact Energized Outputs with Signalling Function:0
No. of Protected Semiconductor Outputs:0
No. of Protected Contact Energized Outputs:0
Actuation Type:Other
Type of Interface:None
Type of Interface for Safety Communication:None
Housing Construction:Cylinder, screw-thread
Housing Coating:Other
Cascadable:No
Category According to EN 954-1:1
SIL According to IEC 61508:None
Performance Level acc. to EN ISO 13849-1:None
Max. Output Current at Protected Output:200mA
Supply Voltage:12V - 24V
Rated Control Voltage Us at AC 50HZ:
Rated Control Voltage Us at AC 60HZ:
Rated Control Voltage Us at DC:12V - 24V
Voltage Type:DC
Switching Frequency:5000Hz
Monitoring Function for ownstream Switching Devices:No
Housing Material:Plastic
Compression Resistant:No
Explosion Safety Category for Gas:None
Explosion Safety Category for Dust:None
Interference Resistance to Magnetic Fields:Immune against magnetic DC- and AC-field
GTIN:3389110514346

No extended details available.
