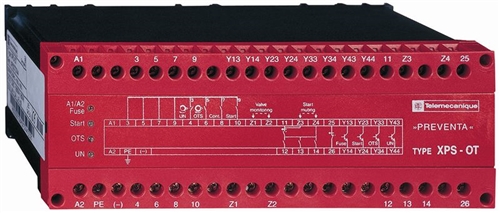

XPSOT3744


SCHNEIDER SAFETY MODULE 230V AC

Schneider Electric

Your cart total:

.

Checkout

0

XPSOT3744

























Supply Voltage:230 VAC
Supply Frequency (Hz):50/60
Consumption (W):< 12
Voltage Reference:Volt-free
Number Of Safety Circuits:3 N/O
Number Of Additional Circuits:4 solid-state
Breaking Capacity In Ac-15:C300: inrush 1800, maintained 180
Breaking Capacity In Dc-13:24V / 1.5A L / R = 50 ms
Max Thermal Current (A):2.5
Output Fuse Protection:4A
Minimum Output Current (Ma):10
Minimum Output Voltage (V):17
Response Time On Input Opening (Ms):< 20
Rated Insulation Voltage (V):300
Rated Impulse Withstand Voltage (Kv):4
Led Display:4
Operating Temperature (°°C):-10 to 55°C
Storage Temperature:-25 to 85C
IP Rating:20 (40 enclosure)
Make:Schneider
Series:Preventa safety modules
Type:Safety stop with automatic overtravel monitoring and control
Weight (kg):1.1

No extended details available.
