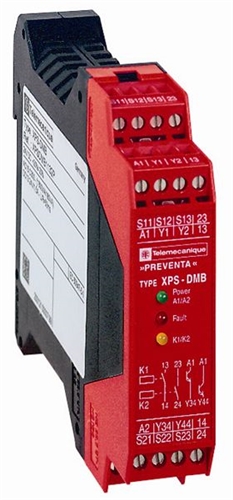

XPSDMB1132P


SCHNEIDER SAFETY MOD CAT4 24VDC

Schneider Electric

Your cart total:

.

Checkout

Alternative Products:

Discontinued

XPSDMB1132P


























Supply Voltage:24 VDC
Consumption (W):< 2.5
Control Unit Voltage:28V / 8 mA
Voltage Reference:Volt-free
Number Of Safety Circuits:2 N/O
Number Of Additional Circuits:2
Breaking Capacity In Ac-15:C300: inrush 1800, maintained 180
Breaking Capacity In Dc-13:24V / 1.5A L / R = 50 ms
Max Thermal Current (A):6
Max Total Thermal Current (A):12
Output Fuse Protection:4A
Minimum Output Current (Ma):10
Minimum Output Voltage (V):17
Response Time On Input Opening (Ms):< 20
Rated Insulation Voltage (V):300
Rated Impulse Withstand Voltage (Kv):4
Led Display:3
Operating Temperature (°°C):-10 to 55°C
Storage Temperature:-25 to 85C
IP Rating:20 (40 enclosure)
Make:Schneider
Series:Preventa safety modules
Type:Coded magnetic switch monitoring
Weight (kg):0.25

No extended details available.
