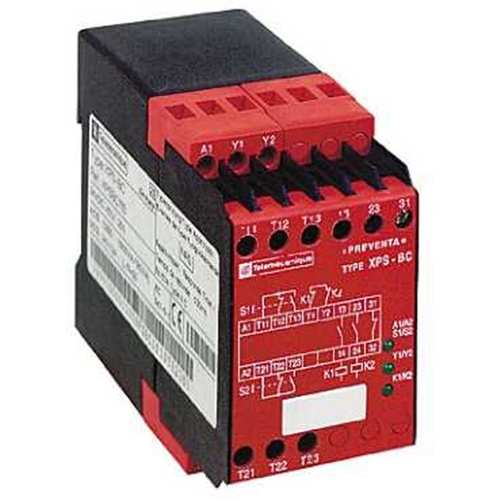

XPSBC3710


SCHNEIDER 2 Hand Safety Relay

Schneider Electric

Your cart total:

.

Checkout

Alternative Products:

Discontinued

XPSBC3710


























Supply Voltage:230 VAC
Supply Frequency (Hz):50/60
Consumption (W):< 6
Control Unit Voltage:48
Voltage Reference:Volt-free
Number of Safety Circuits:2 N/O
Number of Additional Circuits:1 N/C
Breaking Capacity in AC-15:C300: inrush 1800, maintained 180
Breaking Capacity In DC-13:24V / 1.5A L / R = 50 ms
Max Thermal Current (A):2.5
Output Fuse Protection:4A
Minimum Output Current (mA):10
Minimum Output Voltage (V):17
Response Time On Input Opening (ms):< 30
Rated Insulation Voltage (V):300
Rated Impulse Withstand Voltage (kV):4
LED Display:3
Operating Temperature (°°C):-10 to 55°C
Storage Temperature:-25 to 85C
IP Rating:20 (40 enclosure)
Make:Schneider
Series:Preventa safety modules
Type:Electrical monitoring of two-hand control stations
Weight (kg):0.4

No extended details available.
No documents available.
