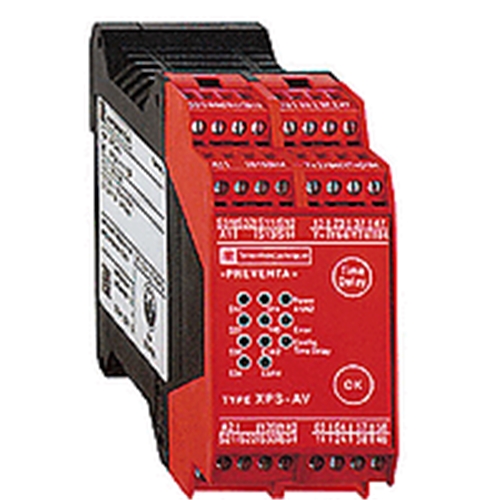

XPSAV11113P


SCHNEIDER SAFETY RELAY

Schneider Electric

Your cart total:

.

Checkout

Alternative Products:

0

XPSAV11113P



























Supply Voltage:24 VDC
Consumption (W):< 5
Start Button Monitoring:Yes/No (configurable)
Control Unit Voltage:24V
Voltage Reference:Volt-free
Number of Safety Circuits:3 N/O (03-04, 13-14, 23-24)
Number of Additional Circuits:3 solid-state
Breaking Capacity in AC-15:C300: inrush 1800, maintained 180
Breaking Capacity In DC-13:24V / 1.25A L / R = 50 ms
Max Thermal Current (A):3.3/3, 6/1 and 2/2, 4/2 and 2/1
Max Total Thermal Current (A):20
Output Fuse Protection:4A
Minimum Output Current (mA):10
Minimum Output Voltage (V):17
Response Time On Input Opening (ms):< 30
Rated Insulation Voltage (V):300
Rated Impulse Withstand Voltage (kV):4
LED Display:11
Operating Temperature (°°C):-10 to 55°C
Storage Temperature:-25 to 85C
IP Rating:20 (40 enclosure)
Make:Schneider
Series:Preventa safety modules
Type:Emergency stop and switch monitoring
Weight (kg):0.32
