XPSAR371144

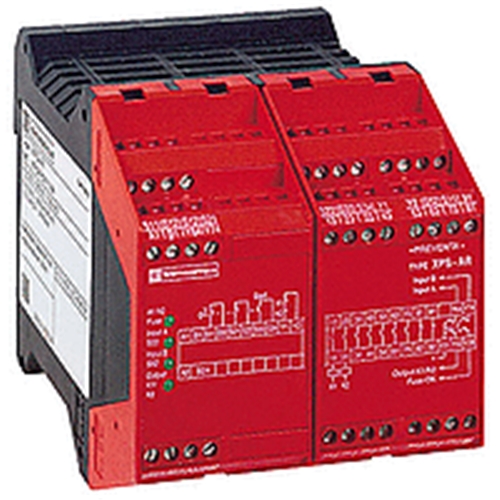

SCHNEIDER SAFETY RELAY

Schneider Electric

Your cart total:

.

Checkout

Alternative Products:

Discontinued

XPSAR371144




























Supply Voltage:230 VAC/24 VDC
Supply Frequency (Hz):50/60
Consumption (W):< 9
Start Button Monitoring:Yes/No (configurable)
Control Unit Voltage:24V DC
Voltage Reference:Volt-free
Number of Safety Circuits:7 N/O
Number of Additional Circuits:4 solid-state
Breaking Capacity in AC-15:B300 inrush: 3600, maintained: 360
Breaking Capacity In DC-13:24V / 2A L / R = 50 ms
Max Thermal Current (A):10
Max Total Thermal Current (A):40
Output Fuse Protection:4A
Minimum Output Current (mA):170
Minimum Output Voltage (V):17
Response Time On Input Opening (ms):< 20
Rated Insulation Voltage (V):300
Rated Impulse Withstand Voltage (kV):4
LED Display:4
Operating Temperature (°°C):-10 to 55°C
Storage Temperature:-25 to 85C
IP Rating:20 (40 enclosure)
Make:Schneider
Series:Preventa safety modules
Type:Emergency stop , switch and safety light curtain monitoring
Weight (kg):0.4
