X2PRO4

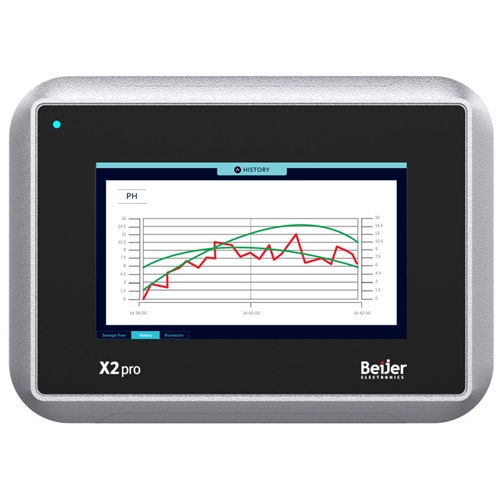

BEIJER (630000105) X2 PRO 4-B2 4.3 HMI 480x272

CPU SINGLE CORE 1GHz 512MB RAM 2GB eMMC

Beijer Electronics

Your cart total:

.

Checkout

4

630000105



































Brand:Beijer Electronics
Family:X2
Series:X2 Pro
Type:HMI
Manf. Part No.:630000105
Description:Beijer X2 pro 4 - B2 4,3" iX HMI, 480x272, CPU Single Core 1GHz, 512MB RAM, 2GB eMMC, 1xLAN, 1x9pin DSUB, USB, SD, 24VDC, -10 to +60C, IP65, CE/FCC, Marine, UL
Supply voltage DC:24V
Voltage type of supply voltage:DC
No. of HW-interfaces industrial Ethernet:1
No. of HW-interfaces RS-232:1
No. of HW-interfaces RS-422:1
No. of HW-interfaces RS-485:2
No. of HW-interfaces USB:1
Supporting protocol for TCP/IP:Yes
Type of display:TFT
With colour display:Yes
Screen diagonal:4.3
No. of pixels, horizontal:480
No. of pixels, vertical:272
Useful project memory/user memory (MB):1500
With numeric keyboard:No
With alpha numeric keyboard:No
Touch technology:Resistive
With recipes:Yes
Degree of protection (IP), front side:IP66
Degree of protection (NEMA), front side:4X/12
Operation temperature: -10°C to +60°C
Panel Mounting Possible:Yes
Width of the front:145
Height of the front:104
Built-in depth:50
Weight (kg):0.5
GTIN:5703436021575

No extended details available.
