X2PRO10

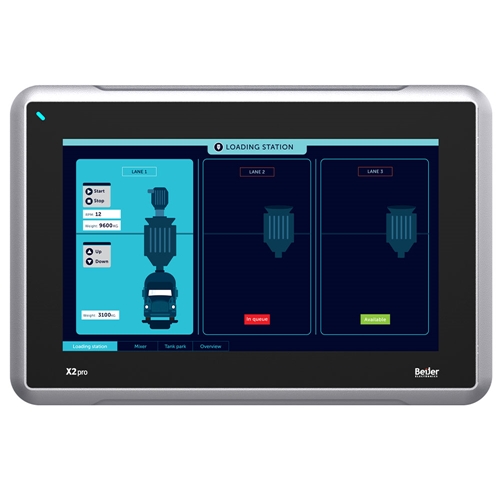

BEIJER (630000305) X2 PRO 10-B2 10.1 HMI 1024x600

CPU DUAL CORE 1GHz 1GB RAM 2GB eMMC

Beijer Electronics

Your cart total:

.

Checkout

3

630000305



































Brand:Beijer Electronics
Family:X2
Series:X2 Pro
Type:HMI
Manf. Part No.:630000305
Description:Beijer X2 pro 10 - B2 10.1" iX HMI, 1024x600, CPU Dual Core 1GHz, 1GB RAM, 2GB eMMC, 2xLAN, 1x9pin DSUB, USB, SD, 24VDC, -10 to +60C, IP65, CE/FCC, Marine, UL
Supply voltage DC:24V
Voltage type of supply voltage:DC
No. of HW-interfaces industrial Ethernet:2
No. of HW-interfaces RS-232:1
No. of HW-interfaces RS-422:1
No. of HW-interfaces RS-485:2
No. of HW-interfaces USB:2
Supporting protocol for TCP/IP:Yes
Type of display:TFT
With colour display:Yes
Screen diagonal:10.1
No. of pixels, horizontal:1024
No. of pixels, vertical:600
Useful project memory/user memory (MB):1500
With numeric keyboard:No
With alpha numeric keyboard:No
Touch technology:Resistive
With recipes:Yes
Degree of protection (IP), front side:IP65
Degree of protection (NEMA), front side:4X/12
Operation temperature: -10°C to +60°C
Panel Mounting Possible:Yes
Width of the front:292
Height of the front:194
Built-in depth:52
Weight (kg):1.65
GTIN:5703436021599

No extended details available.
