WTV182P420

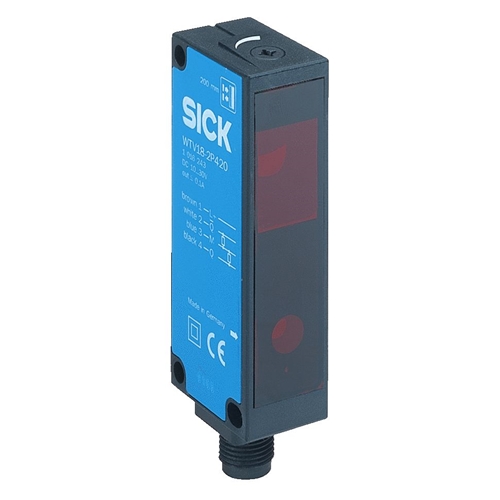

SICK W18-2 PHOTOELECTRIC PROX. SENSOR

(WTV18-2P420)

Sick

Your cart total:

.

Checkout

Discontinued

1016243


































Manufacturer:SICK
Model:WTV18-2P420
Height (mm):76
Width (mm):20
Depth (mm):31.5
Weight (kg):0.06
Series:Photoelectric Sensors
Sensor/Detection Principles:Photoelectric proximity sensor, background suppression
Housing design:Rectangular, Slim
Sensing range max:100 mm … 200 mm
Sensing range:100 mm … 200 mm
Type of light:Infrared light
Light source:LED
Wave length:586 nm
Sensitivity Adjustment:Potentiometer, 9-turn
Light spot size (distance):Ø 8 mm (200 mm)
Supply voltage:10 V DC … 30 V DC
Ripple:< 5 Vpp
Power consumption:30 mA
Output type:PNP
Switching mode:Light/dark-switching
Output current Imax:100 mA
Response time:< 2,000 µs
Switching frequency:250 Hz
Connection type:Connector M12, 4-pin
Circuit protection:A, C, D
Housing material:ABS
Optics material:PMMA
Enclosure rating:IP 67
Special feature:V-optics
Ambient operating temperature:-25 °C … 75 °C
Ambient storage temperature:-25 °C … 60 °C
