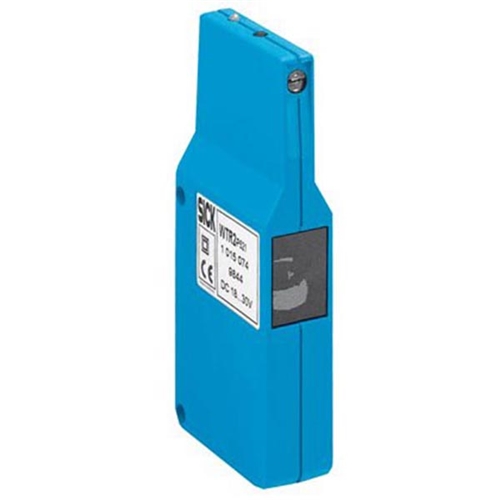

WTR2-P521


SICK (1015074) BACKGROUND SUPPRESSION

Sick

Your cart total:

.

Checkout

Discontinued

1015074
































Manufacturer:SICK
Model:WTR2-P521
Height (mm):99.5
Width (mm):18
Depth (mm):46
Weight (kg):0.04
Series:Photoelectric Sensors
Sensor/Detection Principles:Photoelectric proximity sensor, background suppression
Housing design:Fitter roller spacings
Sensing range:300 mm … 900 mm
Type of light:Infrared light
Light source:LED
Light spot (distance):40 mm (900 mm)
Sensitivity Adjustment:Adjustable via sensing range adjustment
Supply voltage:10 V DC … 30 V DC
Ripple:< 5 Vpp
Power consumption:< 25 mA
Output type:PNP
Switching mode:Dark switching
Signal voltage PNP HIGH/LOW:Approx. VS - < 2.0 V/0 V
Output current Imax:< 100 mA
Switching frequency:250 Hz
Connection type:Connector M12, 4-pin
Circuit protection:A, C, D
Protection class:II
Housing material:ABS, Plastic
Enclosure rating:IP 54
Ambient operating temperature:-40 °C … 60 °C
Ambient storage temperature:-40 °C … 75 °C
UL File Number:NRKH.E181493 & NRKH7.E181493
