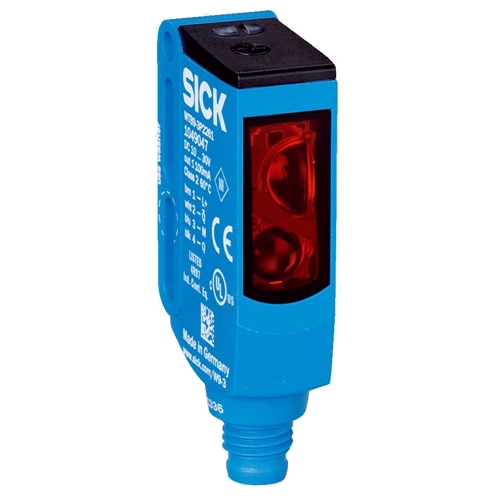

WTB9-3P2261


SICK SENSOR (1049047)

REPLACES WT9-2P330 (1019026)

Sick

Your cart total:

.

Checkout

0

1049047




































Manufacturer:SICK
Model:WTB9-3P2261
Height (mm):49.8
Width (mm):12.2
Depth (mm):23.6
Weight (kg):0.013
Series:Photoelectric Sensors
Sensor/Detection Principles:Photoelectric proximity sensor, background suppression
Housing design:Rectangular
Mounting hole:M3
Sensing range max:20 mm … 350 mm
Sensing range:20 mm … 200 mm
Type of light:Visible red light
Light source:PinPoint LED
Wave length:650 nm
Sensitivity Adjustment:Potentiometer, 5-turn
Light spot size (distance):Ø 4.5 mm (75 mm)
Supply voltage:10 V DC … 30 V DC
Power consumption:< 30 mA
Output type:PNP
Output function:Complementary
Switching mode:Light/dark-switching
Output current Imax:< 100 mA
Response time:< 0.333 ms
Switching frequency:1,500 Hz
Connection type:Connector M8, 4-pin
Circuit protection:A, B, C
Protection class:III
Housing material:Plastic, VISTAL
Optics material:PMMA
Enclosure rating:IP 66, IP 67, IP 69K
Ambient operating temperature:-40 °C … 60 °C
Ambient storage temperature:-40 °C … 75 °C
UL File Number:NRKH.E181493
