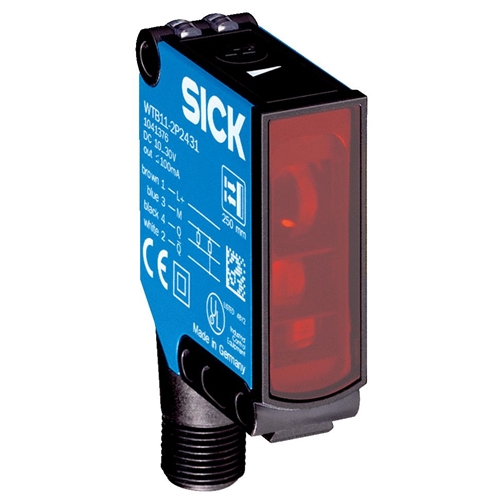

WTB11-2P2461


SICK SENSOR WITH BACKGROUND BLANKING

Sick

Your cart total:

.

Checkout

0

1044442




































Manufacturer:SICK
Model:WTB11-2P2461
Height (mm):48.5
Width (mm):15.6
Depth (mm):42
Weight (kg):0.12
Series:Photoelectric Sensors
Sensor/Detection Principles:Photoelectric proximity sensor, background suppression
Housing design:Rectangular
Sensing range max:30 mm … 1,100 mm
Sensing range:30 mm … 800 mm
Type of light:Visible red light
Light source:PinPoint LED
Wave length:660 nm
Sensitivity Adjustment:Potentiometer, 5-turn
Light spot size (distance):Ø 6 mm (200 mm)
Supply voltage:10 V DC … 30 V DC
Power consumption:< 30 mA
Output type:PNP
Output function:Complementary
Switching mode:Light/dark-switching
Signal voltage PNP HIGH/LOW:Uv -2.5 V/approx. 0 V
Output current Imax:100 mA
Response time:< 2.5 ms
Switching frequency:200 Hz
Connection type:Connector M12, 4-pin
Circuit protection:A, C, D
Protection class:II
Housing material:ABS, Plastic
Optics material:PMMA
Enclosure rating:IP 66, IP 67, IP 69K
Ambient operating temperature:-30 °C … 60 °C
Ambient storage temperature:-40 °C … 75 °C
UL File Number:NRKH.E181493 & NRKH7.E181493
