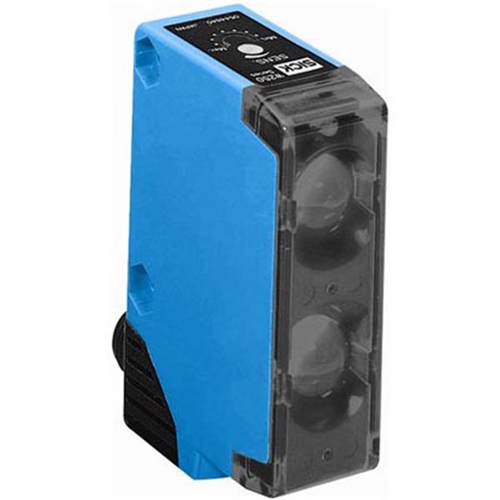

WT250P440


PROXIMITY PE, BGS, 300MM RANGE, PNP, RED

Sick

Your cart total:

.

Checkout

Discontinued

6010621







































Manufacturer:SICK
Model:WT250-P440
Height (mm):65
Width (mm):20
Depth (mm):43
Weight (kg):0.04
Series:Photoelectric Sensors
Sensor/Detection Principles:Photoelectric proximity sensor, background suppression
Housing design:Rectangular
Sensing range max:100 mm … 300 mm
Sensing range:100 mm … 300 mm
Type of light:Visible red light
Light source:LED
Light spot (distance):25 mm (300 mm)
Sensitivity Adjustment:Potentiometer, 2-turn
Angle of dispersion:3°
Supply voltage:10 V DC … 30 V DC
Ripple:< 5 Vpp
Power consumption:< 35 mA
Output type:PNP
Switching mode:Light/dark-switching
Output characteristic:Open collector
Switching mode selector:Selectable via L/D control wire
Output current Imax:100 mA
Response time:< 2 ms
Switching frequency:250 Hz
Connection type:Connector M12, 4-pin
Circuit protection:A, B, C, D
Protection class:II
Housing material:ABS
Optics material:PC
Enclosure rating:IP 67
Items supplied:BEF-W250 mounting bracket
Ambient operating temperature:-25 °C … 55 °C
Ambient storage temperature:-40 °C … 70 °C
UL File Number:NRNT2.E128350 & NRNT8.E128350
Discontinued:The product has been discontinued. Replacement product: WTB250-2P2431

No extended details available.
