WSWE183P430

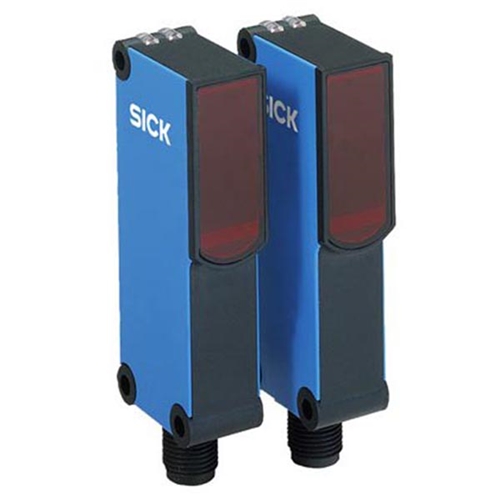

SICK SENDER + RECEIVER (1025923)

Sick

Your cart total:

.

Checkout

Discontinued

1025923





































Manufacturer:SICK
Model:WS/WE18-3P430
Height (mm):75.5
Width (mm):17.6
Depth (mm):33.5
Weight (kg):0.04
Series:Photoelectric Sensors
Sensor/Detection Principles:Through-beam photoelectric sensor
Housing design:Rectangular, Slim
Sensing range max:0 m … 20 m
Type of light:Visible red light
Light source:LED
Wave length:645 nm
Sensitivity Adjustment:Potentiometer, 1-turn
Light spot size (distance):Ø 450 mm (15,000 mm)
Supply voltage:10 V DC … 30 V DC
Ripple:< 5 Vpp
Power consumption, sender:< 45 mA
Power consumption, receiver:< 35 mA
Output type:PNP
Output function:Complementary
Switching mode:Light/dark-switching
Output current Imax:100 mA
Response time:< 500 µs
Switching frequency:1,000 Hz
Connection type:Connector M12, 4-pin
Circuit protection:A, C, D
Housing material:ABS, Plastic
Optics material:PMMA
Enclosure rating:IP 67
Test input sender off:TE to 0 V
Ambient operating temperature:-40 °C … 60 °C
Ambient storage temperature:-40 °C … 75 °C
Part number of individual components:Receiver, WE18-3P430, 2031003, Sender, WS18-3D430, 2031001
UL File Number:NRKH.E181493 & NRKH7.E181493

No extended details available.
