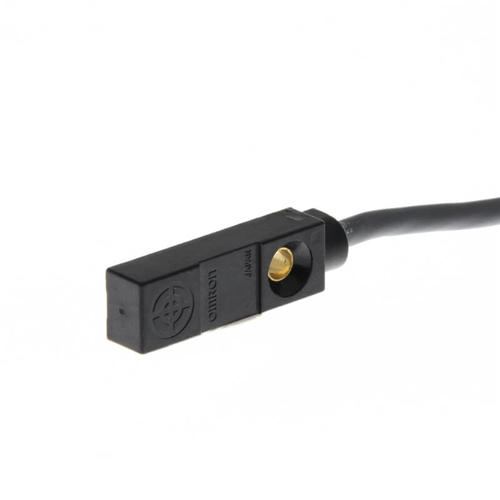

TLW1R5MC1


OMRON PROXIMITY SENSOR INDUCTIVE UNSHIELDED

1.5MM, DC, 3-WIRE, NPN-NO,2M CABLE.

Omron

Your cart total:

.

Checkout

0

TL-W1R5MC1









































Brand:Omron
Product Type:Inductive Proximity Switch
Manf. Part No.:TL-W1R5MC1
Width Sensor:25mm
Height of Sensor:8mm
Length of Sensor:5mm
Sensor Diameter:8mm
Mounting Style:Other
Switching Distance:1.5mm
Suitable for Safety Functions:No
Switch Function:Normally Open
Type of Switching Output:NPN
Electrical Connection:Cable
No. of Semiconductor Outputs with Signalling Function:1
No. of Contact Energized Outputs with Signalling Function:0
No. of Protected Semiconductor Outputs:0
No. of Protected Contact Energized Outputs:0
Actuation Type:Metallic Target
Type of Interface:None
Type of Interface for Safety Communication:None
Housing Construction:Special construction
Housing Coating:Other
Cascadable:Yes
Category According to EN 954-1:B
SIL According to IEC 61508:None
Performance Level acc. to EN ISO 13849-1:Level a
Max. Output Current at Protected Output:100mA
Supply Voltage:10V - 30V
Rated Control Voltage Us at AC 50HZ:
Rated Control Voltage Us at AC 60HZ:
Rated Control Voltage Us at DC:12V - 24V
Voltage Type:DC
Switching Frequency:1000Hz
Monitoring Function for ownstream Switching Devices:No
Housing Material:Other
Compression Resistant:No
Explosion Safety Category for Gas:None
Explosion Safety Category for Dust:None
GTIN:04536854116315

No extended details available.
No documents available.
