RM35TF30


SCHNEIDER MULTIFUNC 3PH CONTROL RELAY PHASE

ROTATION

Schneider Electric

Your cart total:

.

Checkout

0

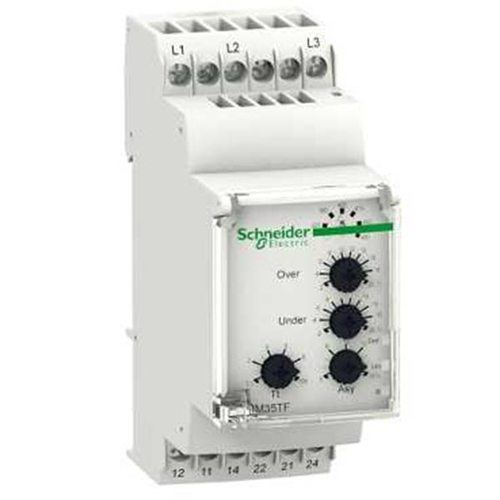

RM35TF30














Relay Monitored Parameters:Asymmetry, Phase failure detection, Phase sequence, Undervoltage and overvoltage in window mode
Time Delay :Adjustable 0.1...10 s, 10 %
Switching Capacity:1250 VA
Minimum Switching Current:10 mA at 5 V DC
Maximum Switching Current :5 A AC/DC
Measurement Range:194...528 V AC
Reset Time:<= 1500 ms for at 480 V
Maximum Switching Voltage:250 V AC/DC
Control Circuit Voltage Limits:- 12 %, + 10 % Un
Height (mm):90
Width (mm):35
Depth (mm):72

No extended details available.
