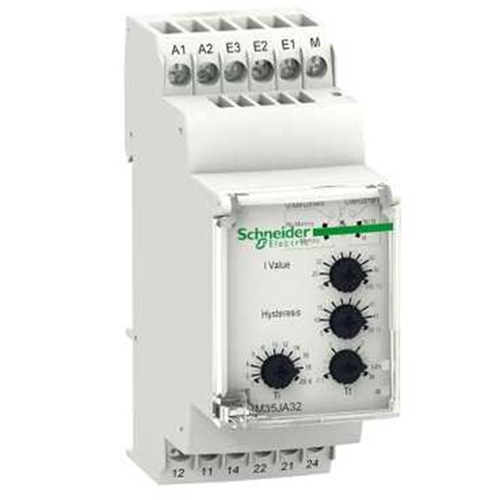

RM35JA32MW


SCHNEIDER ZELIO CURRENT MEASUREMENT RELAY

159MAA-15A 24V-240V AC/DC

Schneider Electric

Your cart total:

.

Checkout

0

RM35JA32MW














Relay Monitored Parameters:Overcurrent or undercurrent detection
Time Delay :0.3s to 30s adjustable
Switching Capacity:1250 VA
Minimum Switching Current:10 mA at 5 V DC
Maximum Switching Current :5 A AC/DC
Measurement Range:0.15...1.5 A E1-M terminals, 0.5...5 A E2-M terminals, 1.5...15 A E3-M terminals, 150 mA...15 A current
Reset Time:1500 ms for time delay
Maximum Switching Voltage:250 V AC/DC
Control Circuit Voltage Limits:- 15 % + 10 % Un
Height (mm):90
Width (mm):35
Depth (mm):72

No extended details available.
