PNOZ/S4/48-240

































Type:PNOZ s4

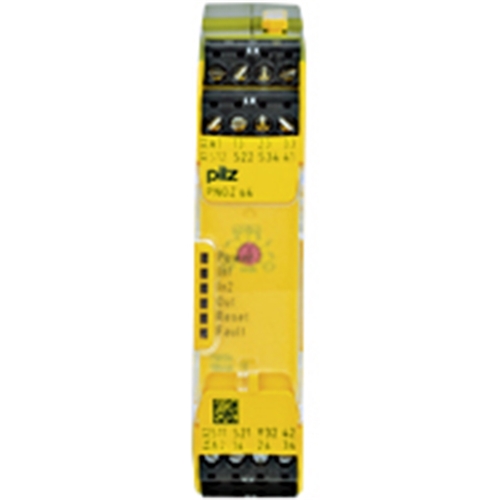

Description:PILZ SIGMA (750134) SAFETY RELAY PNOZ/S4
Product Version:1
Approvals:CE, cULus Listed, TÜV, GOST, CCC, KOSHA
Category In Accordance With:EN ISO 13849-1
Application Options:Safety gate monitor, Instantaneous E-STOP monitoring, Limit switch, Light beam device mon. Type 4, Light beam device mon. Type 2 with t/p, Light beam device mon. Type 2 w/o t/p
Operating Modes:Single-channel, Automatic reset, Dual-channel, Manual reset, Detection of shorts across contacts, Start-up testing, Monitored manual reset, without detection of shorts across contacts, Self test
PL EN ISO 13849-1 inst. Contacts:e
SIL CL IEC 62061 inst. Contacts:3
Product Standard:EN 60947-5-1
Standards:EN 60204-1, EN 62061, EN 954-1, VDE 0113-1
Supply Voltage (V):48 - 240
Supply Voltage Type:AC/DC
Supply Voltage Range (V):48 - 240
Terminal Style:Plug-in
Terminal Type:Screw terminal
Cat. Inst. Saf. Contacts:4
Number Of Instantaneous Safety Contacts:3
Number Of Auxiliary Contacts:1
Number Of Semiconductor Outputs:1
Stop Category:0
Max. Current At DC13 I (6 cycles/min) (A):4
Max. Current At AC15 (A):3
Ambient Temperature:-10 - 55 °C
Make:Pilz
Series:PNOZ s4
Product Range :Safety Relay
Height (mm):98
Width (mm):22.5
Depth (mm):120
Weight (kg):0.21
