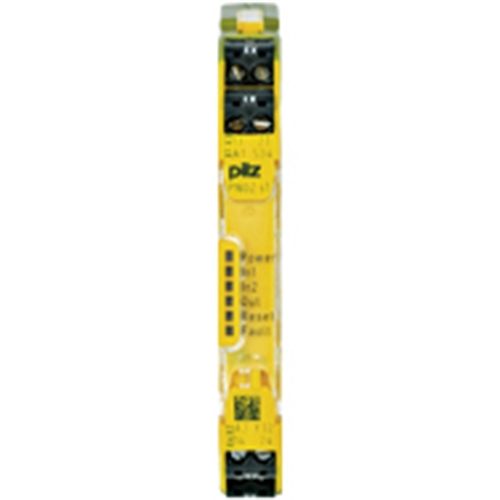

PNOZ/S1/24VDC


PILZ SIGMA (750101) SAFETY RELAY 24VDC 1

CHANNEL MANUAL-AUTO RESET

Pilz

Your cart total:

.

Checkout

0

PNOZ/S1/24VDC































Type:PNOZ s1
Description:PILZ SIGMA (750101) SAFETY RELAY 24VDC 1
Product Version:1
Approvals:CE, cULus Listed, TÜV, GOST, CCC, KOSHA
Category In Accordance With:EN 954-1, EN ISO 13849-1
Application Options:Safety gate monitor, Instantaneous E-STOP monitoring, Limit switch
Operating Modes:Single-channel, Automatic reset, Manual reset
PL EN ISO 13849-1 inst. Contacts:c
SIL CL IEC 62061 inst. Contacts:2
Product Standard:EN 60947-5-1
Standards:EN 60204-1, EN 62061, EN 954-1, VDE 0113-1
Supply Voltage (V):24
Supply Voltage Type:DC
Terminal Style:Plug-in
Terminal Type:Screw terminal
Cat. Inst. Saf. Contacts:2
Number Of Instantaneous Safety Contacts:2
Number Of Semiconductor Outputs:1
Stop Category:0
Max. Current At DC13 I (6 cycles/min) (A):1.5
Max. Current At AC15 (A):1.5
Ambient Temperature:-10 - 55 °C
Make:Pilz
Series:PNOZ s1
Product Range :Safety Relay
Height (mm):98
Width (mm):12.5
Depth (mm):120
Weight (kg):0.105

No extended details available.
