PKX16M435

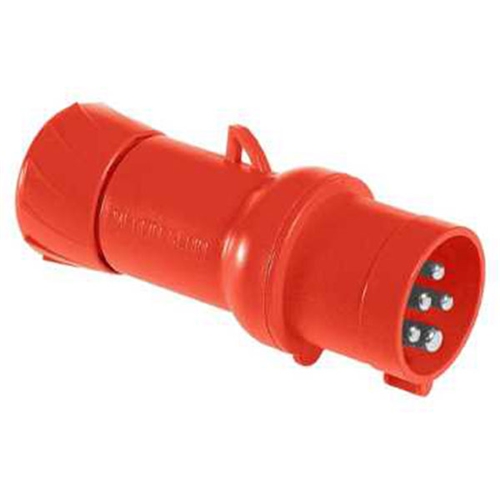

SCHNEIDER PLUG 16A IP44 400V 3P+N+E FAST

Your cart total:

0

PKX16M435






























Range of Product:PratiKa
Product or Component Type:Wander plug
Device Short Name:PratiKa plug
Plug Socket Category:Low voltage
Poles Description:3P + N + E
Network Type:AC
Outlet Standard:Industrial
Rated Current:16 A
Rated Operational Voltage:380…415 V
Network Frequency:50/60 Hz
Ground Lug Clockwise Position:6 h
Plug, Socket Material:Self-extinguishing engineering polymer housing:
Contacts Material:Brass sleeves
Connections - Terminals:Fast connection
Cable Cross Section:1…2.5 mm²
Cable Outer Diameter:8…15 mm
Cable Entry:Cable gland
Fair lead
Thread Type:Pg 21
Voltage Colour:Red
IP Degree of Protection:IP44 conforming to IEC 60529
Operating Altitude:2000 m
Fire Resistance:850 °C conforming to IEC 60695-2-11
Ambient Air Temperature :35 °C ( 86400 s )
-25...40 °C
Height (mm):142
Width (mm):74
Depth (mm):74
Weight (kg):0.212

No extended details available.
