PCI1761BE


ADVANTECH 8 CHANNEL RELAY AND 8 CHANNEL ISOLATED

DIGITAL INPUT CARD

Advantech

Your cart total:

.

Checkout

0

PCI-1761
























Brand:Advantech
Family:PCI
Type:Digital IO PCI Boards
Mfr. Part No.:PCI-1761

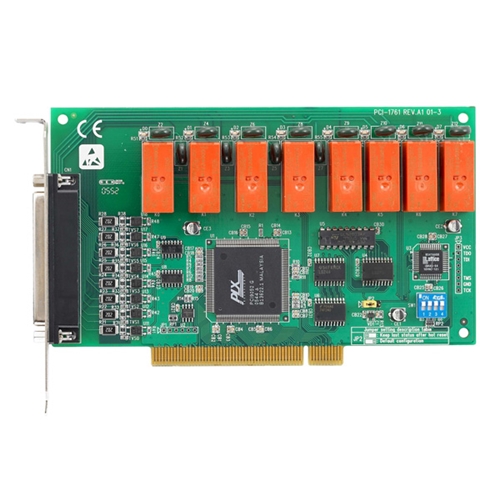

Description:Advantech 8 Channel Relay and 8 Isolated Digital Input PCI Card
No. of Digital Inputs:8
Input Voltage (V); Logic 0:3V max.
Input Voltage (V); Logic 1:10V min. (50V max.)
Input Isolation Protection:2,500VDC
Input Opto-Isolator Response:100us
No. of Relay Outputs:8
Relay Type:4 x Form C, and 4 x Form A
Contact Rating:2A @ 250VAC, 2A @30VDC
Max. Switching Power:500VA, 60W
Max. Switching Voltage:400VAC, 300VDC
I/O Connector:1 x DB37 female connector
Power Consumption, Typical:5V @ 220mA
Power Consumption, Max:5V @ 750mA
Operating Temp. Min. (Deg C):0
Operating Temp. Max. (Deg C):60
Length (mm):175
Height (mm):100

No extended details available.
