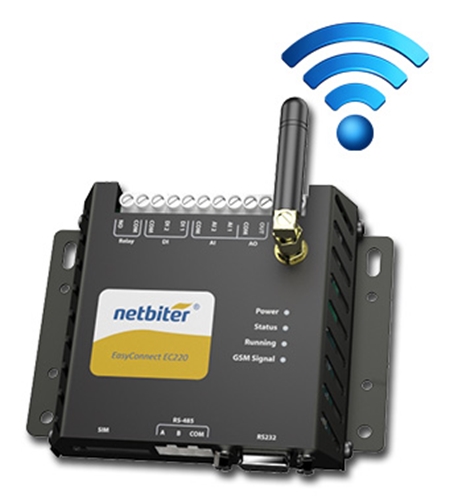

HMS EC220 NETBITER METAL HOUSING

HMS

Your cart total:

.

Checkout

0

NB1000






















GSM/GPRS :Quad-Band GPRS Class 12 (850/900/1800/1900 MHz)
Relay Outputs:1
Digital Inputs:2 (isolated)
Analog Inputs:2
Analog Output (0-10 V) :1
Serial Port 1:RS-232, 1,2 kbit/s up to 115,2 kbit/s
Serial Port 2 (isolated):RS-485, 1,2 kbit/s  up to 115,2 kbit/s
Antenna Connector:SMA female
Temperature Sensor :2 Built-in (one on the PCB and one on the modem)
Protocols:Modbus-RTU/ASCII Master
Wall Mounting / DIN Rail :YES / YES with DIN-rail mounting kit
Operating Temperature :-30 to +65 °C  or  -30 to +149 °F
Power Supply :9-24 VDC
Power Consumption (at max 24 VDC) :2 W
Argos Parameters:16 Visualization / Overview
Argos Log Parameters :16
No of Alarms :16 via E-mail/SMS/RSS
Height (mm):92
Width (mm):115
Depth (mm):25

No extended details available.
