LV430520

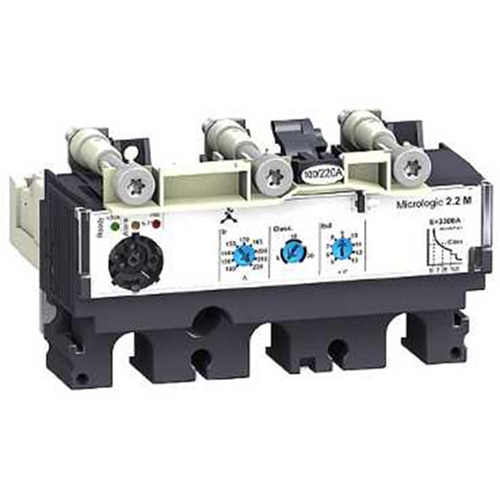

SCHNEIDER 3P3D MICROLOGIC 2.2 M 150A TRIP UNIT 3P

MOTOR PROTECTION (FOR NSX.. .250)

Schneider Electric

Your cart total:

.

Checkout

Alternative Products:

0

LV430520















Range of product:NSX100...250
Number of protected poles:3P
Trip unit technology:Electronic
Trip unit rating:150 A ( 65 °C )
Protection type:Instantaneous short-circuit protection
Instantaneous short-circuit protection
Overload protection (long time)
Overload protection (long time)
Short time short-circuit protection
Short time short-circuit protection
Mounting mode:Fixed
Rated operational voltage:690 V AC 50/60 Hz
Long time pick-up adjustment range:70...150 A
70...150 A
Long-time delay adjustment:10 s 7.2 x Ir 10
120 s 1.5 x Ir 5
20 s 7.2 x Ir 20
240 s 1.5 x Ir 10
26 s 6 x Ir 20
480 s 1.5 x Ir 20
5 s 7.2 x Ir 5
13.5 s 6 x Ir 10
6.5 s 6 x Ir 5
IP degree of protection:IP40 conforming to IEC 60529
Pollution degree:3 conforming to IEC 60947-1
Weight kg:0.45
