L41E21KA1A


SICK SENSOR

Sick

Your cart total:

.

Checkout

0

6034865





































Manufacturer:SICK

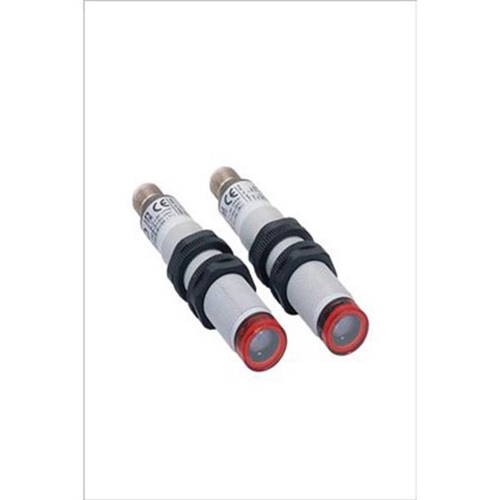

Model:L41E-21KA1A
Height (mm):97.7
Weight (kg):0.03
Diameter:M18
Series:Single-beam Photoelectric Safety Switch
Type:Receiver
Access protection (vertical:1
Typical range:0 m … 10 m
Number of beams:1
Optical axis:Axial
Aperture angle/receiving angle:According to type 4 (IEC 61496-2)
Protection class:III
Enclosure rating:IP 67
Type:Type 4 (IEC 61496)
Safety integrity level:SIL3 (IEC 61508), SILCL3 (IEC 62061)
Category:Category 4 (EN ISO 13849)
Performance level:PL e (EN ISO 13849)
PFHd:8.1 * 1E-10
TM (mission time):20 a
Supply voltage typical, from, to:24 V DC, 19.2 V DC, 28.8 V DC
Switching outputs:PNP, Q
Maximum response time:200 µs
Maximum switching current:70 mA
Maximum power consumption:< 30 mA
Design:Cylindrical
Connection type:Plug M12 x 4, straight
Housing material:Plastic
Lens material:Glass
Ambient operating temperature from … to:-40 °C … 55 °C
Storage temperature from … to:-40 °C … 55 °C
Air humidity from … to:Non-condensing 15 … 95 %
Vibration resistance (checked to):5 g (IEC 60068-2-6)
Oscillation frequency from … to:10 Hz … 55 Hz
Shock resistance:10 g, 16 ms (IEC 60068-2-29)

No extended details available.
