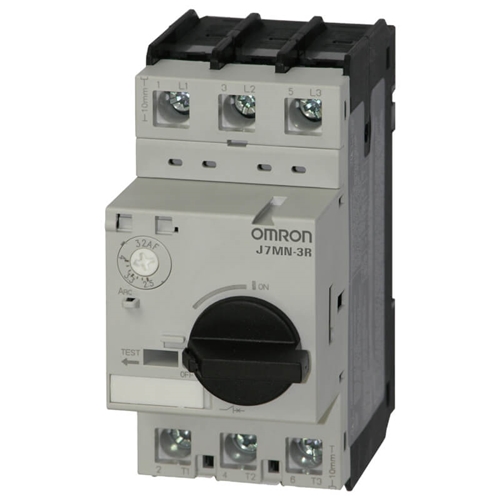

J7MN3R26


Omron Motor-protective circuit breaker,

rotary type, 3-pole, 18-26A

Omron

Your cart total:

.

Checkout

0

J7MN-3R-26




























Brand:Omron
Series:J7MN
Product Type:Motor protection circuit-breaker
Manf. Part No.:J7MN-3R-26
Overload release current setting:18A - 26A
Adjustment range undelayed short-circuit release:338A
Thermal protection:Yes
Phase failure sensitive:Yes
Switch off technique:Thermomagnetic
Rated operating voltage:400V
Rated permanent current Iu:26A
Rated operation power at AC-3, 230 V:11kW
Rated operation power at AC-3, 400 V:11kW
Type of electrical connection of main circuit:Screw connection
Type of control element:Turn button
Device construction:Complete device in housing
With integrated auxiliary switch:No
With integrated under voltage release:No
Number of poles:3
Rated short-circuit breaking capacity lcu at 400 V, AC:50kA
Degree of protection (IP):IP20
Height:98mm
Width:45mm
Depth:100mm
Weight:0.36Kg
GTIN:04547648327213

No extended details available.
