J7MN3R1E6

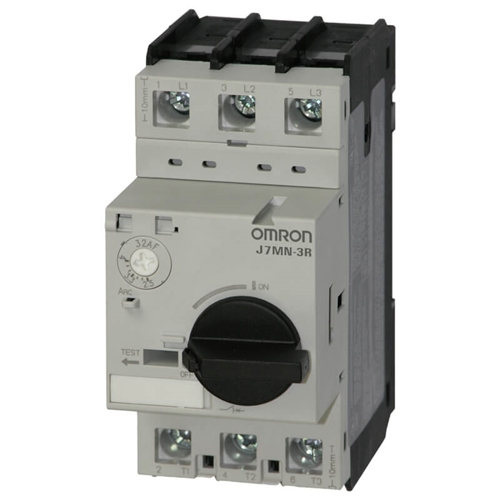

Omron Motor-Protective Circuit Breaker

Rotary Type, 3-Pole, 1-1.6A

Omron

Your cart total:

.

Checkout

0

J7MN-3R-1E6




























Brand:Omron
Series:J7MN
Product Type:Motor protection circuit-breaker
Manf. Part No.:J7MN-3R-1E6
Overload release current setting:1A - 1.6A
Adjustment range undelayed short-circuit release:20.8A
Thermal protection:Yes
Phase failure sensitive:Yes
Switch off technique:Thermomagnetic
Rated operating voltage:400V
Rated permanent current Iu:1.6A
Rated operation power at AC-3, 230 V:0.55kW
Rated operation power at AC-3, 400 V:0.55kW
Type of electrical connection of main circuit:Screw connection
Type of control element:Turn button
Device construction:Complete device in housing
With integrated auxiliary switch:No
With integrated under voltage release:No
Number of poles:3
Rated short-circuit breaking capacity lcu at 400 V, AC:100kA
Degree of protection (IP):IP20
Height:98mm
Width:45mm
Depth:100mm
Weight:0.36Kg
GTIN:04547648327121

No extended details available.
