J7MN3R10


OMRON 6-10A MPCB

Omron

Your cart total:

.

Checkout

0

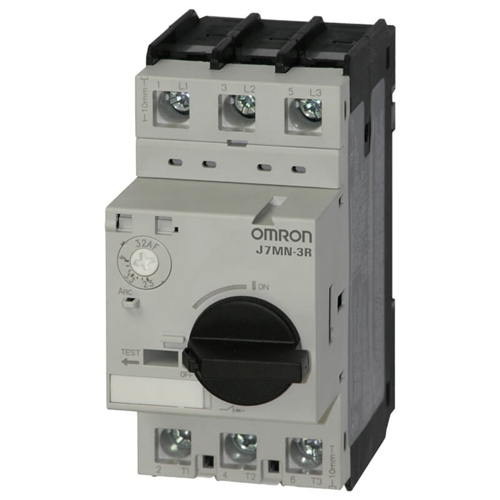

J7MN-3R-10




























Brand:Omron
Series:J7MN
Product Type:Motor protection circuit-breaker
Manf. Part No.:J7MN-3R-10
Overload release current setting:6A - 10A
Adjustment range undelayed short-circuit release:130A
Thermal protection:Yes
Phase failure sensitive:Yes
Switch off technique:Thermomagnetic
Rated operating voltage:400V
Rated permanent current Iu:10A
Rated operation power at AC-3, 230 V:4kW
Rated operation power at AC-3, 400 V:4kW
Type of electrical connection of main circuit:Screw connection
Type of control element:Turn button
Device construction:Complete device in housing
With integrated auxiliary switch:No
With integrated under voltage release:No
Number of poles:3
Rated short-circuit breaking capacity lcu at 400 V, AC:100kA
Degree of protection (IP):IP20
Height:98mm
Width:45mm
Depth:100mm
Weight:0.36Kg
GTIN:04547648327176
