J7MN3R1

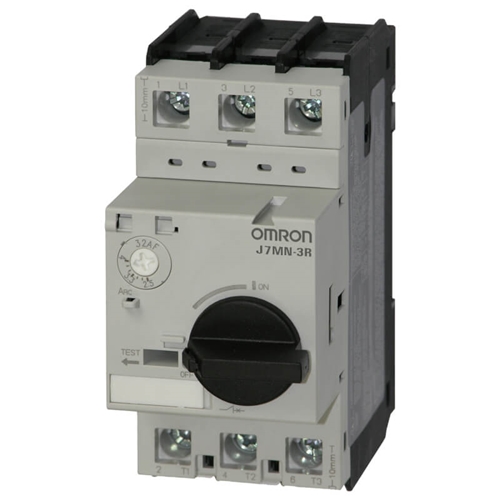

Omron Motor-protective circuit breaker,

rotary type, 3-pole, 0.63-1 A

Omron

Your cart total:

.

Checkout

0

J7MN-3R-1




























Brand:Omron
Series:J7MN
Product Type:Motor protection circuit-breaker
Manf. Part No.:J7MN-3R-1
Overload release current setting:0.63A - 1A
Adjustment range undelayed short-circuit release:13A
Thermal protection:Yes
Phase failure sensitive:Yes
Switch off technique:Thermomagnetic
Rated operating voltage:400V
Rated permanent current Iu:1A
Rated operation power at AC-3, 230 V:0.25kW
Rated operation power at AC-3, 400 V:0.25kW
Type of electrical connection of main circuit:Screw connection
Type of control element:Turn button
Device construction:Complete device in housing
With integrated auxiliary switch:No
With integrated under voltage release:No
Number of poles:3
Rated short-circuit breaking capacity lcu at 400 V, AC:100kA
Degree of protection (IP):IP20
Height:98mm
Width:45mm
Depth:100mm
Weight:0.36Kg
GTIN:04547648327114

No extended details available.
