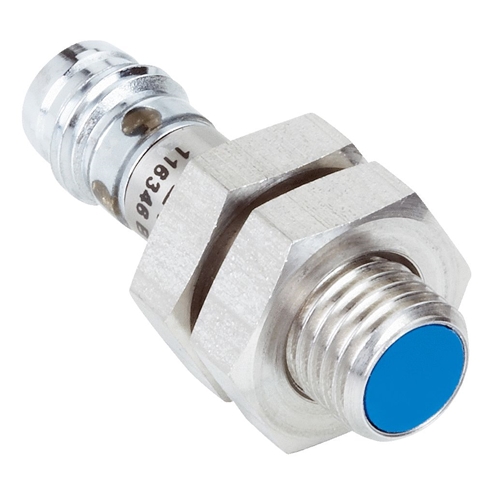

IM08-02BPS-ZT1


SICK (7900005) INDUCTIVE PROXIMITY

SENSOR

Sick

Your cart total:

.

Checkout

0

7900005




































Manufacturer:SICK
Model:IM08-02BPS-ZT1
Length (mm):50
Series:Inductive Proximity Sensors
Housing:Cylindrical
Thread size:M8 x 1
Sensing range Sn:2 mm
Installation type:Flush
Switching frequency:3,000 Hz
Output type:PNP
Output function:NO
Electrical wiring:DC 3-wire
Enclosure rating:IP 67
Connection type:Connector M8, 3-pin
Housing:Standard
Supply voltage:10 V DC … 30 V DC
Ripple:< 10 %
Voltage drop:< 1.2 V
Power consumption:< 20 mA
Time delay before availability:< 100 ms
Hysteresis:2 % … 15 %
Repeatability:< 5 %
Temperature drift (% of Sr):± 10 %
EMC:According to EN 60947-5-2
Output current Ia:< 200 mA
Short-circuit protection:Yes
Reverse polarity protection:Yes
Power-up pulse protection:Yes
Shock/vibration:30 g, 11 ms/10 Hz … 55 Hz, 1 mm
Ambient operating temperature:-25 °C … 70 °C
Housing material:Metal, Nickel-plated brass
Housing cap material:Plastic
Thread length:35.3 mm
Tightening torque, max:4 Nm
