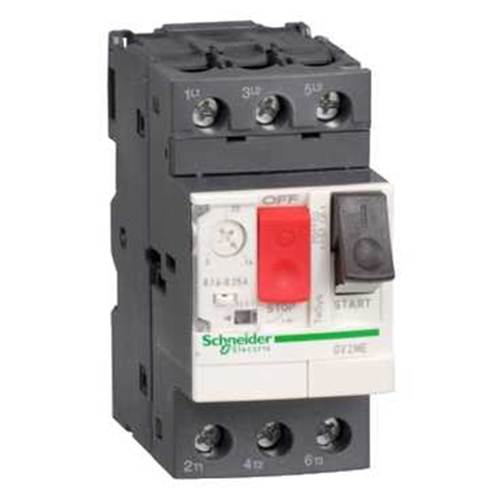

GV2ME16


Schneider Electric TeSys Deca, 3P, 9 to 14A, therm

al magnetic, screw clamp terminals, button control Motor circuit breaker

Schneider Electric

Your cart total:

.

Checkout

6

GV2ME16





























Brand:Schneider Electric
Family:TeSys
Series:GV2
Product Type:Motor protection circuit-breaker
Manf. Part No.:GV2ME16
Overload release current setting:9A - 14A
Adjustment range undelayed short-circuit release:170A
Thermal protection:Yes
Phase failure sensitive:Yes
Switch off technique:Thermomagnetic
Rated operating voltage:230V - 690V
Rated permanent current Iu:14A
Rated operation power at AC-3, 230 V:3kW
Rated operation power at AC-3, 400 V:5.5kW
Type of electrical connection of main circuit:Screw connection
Type of control element:Push button
Device construction:Complete device in housing
With integrated auxiliary switch:No
With integrated under voltage release:No
Number of poles:3
Rated short-circuit breaking capacity lcu at 400 V, AC:15kA
Degree of protection (IP):IP20
Height:89mm
Width:45mm
Depth:78.2mm
Weight:0.28Kg
GTIN:3389110343175
