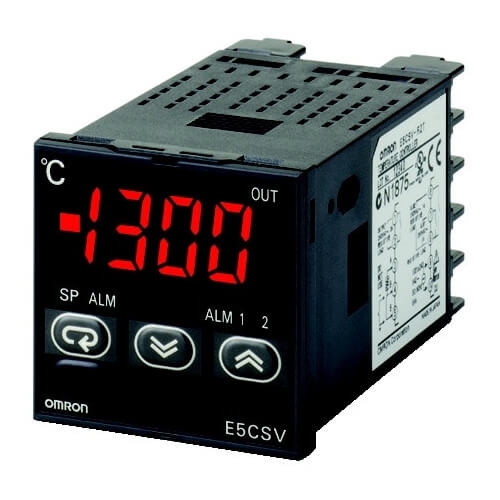

E5CSVQ1T500


OMRON TEMP CONTROLLER 1/16DIN 12VDC PULSED OUTPUT

THERMOCOUPLE AND RTD(PT100) INPUT 100-24 0VAC SUPPLY

Omron

Your cart total:

.

Checkout

Discontinued

E5CSV-Q1T-500 AC100-240




















Series :E5C
Terminal Cover:Yes
Power Supply Voltage :100 to 240 VAC, 50/60 Hz
Operating Voltage Range:85% to 110% of rated supply voltage
Power Consumption:100 to 240 VAC: 5 VA
Input Type:Thermocouple/platinum resistance thermometer
Control Method:ON/OFF control or 2-PID control (with auto-tuning)
Control Output:Voltage for driving SSR
Alarm Outputs:1
Setting Method:Digital setting using front panel keys
Indication Method:7-segment digital display
Ambient Operating Temperature:-10 to 55°C
Ambient Operating Humidity:25% to 85%
Storage Temperature:-25 to 65°C
Height (mm):48
Width (mm):48
Depth (mm):84
Weight (kg):0.183

No extended details available.
