E5ANHAA2HBM500


OMRON TEMP CONTROLLER

Omron

Your cart total:

.

Checkout

0

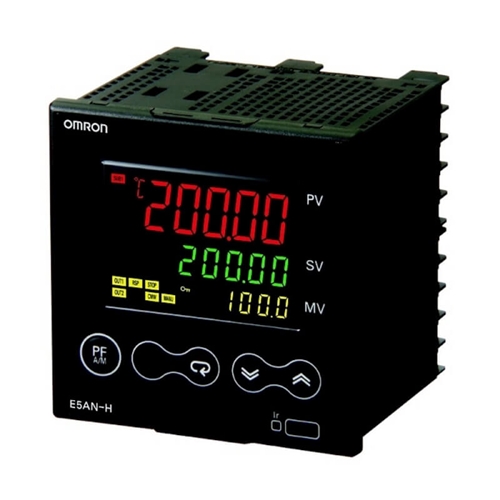

E5AN-HAA2HBM-500 AC100-240






















Series :E5A
Supply Voltage :100 to 240 VAC
Thermocouple Input Type:K, L (with sensor break detection)
RTD Input Type:Pt100, THE
Control Mode:Standard or heating/cooling control
Setting Method :Analogue setting
Output :2 Control Output Units
Life Expectancy :Electrical: 100,000 operations min
Setting Accuracy :± 2% FS max
Hysteresis:Approx 0.5% FS (fixed)
Proportional Band:3% FS (fixed)
Reset Range:5± 1% FS min
Control Period :20s
Ip Rating Front Panel:IP40
Ip Rating Terminals :IP00
Ambient Temperature :-10 to 55°c
Height (mm):96
Width (mm):96
Depth (mm):79.2
Weight (kg):0.5
