E2Q5N20F1M1


OMRON INDUCTIVE PROX. SENSOR

Omron

Your cart total:

.

Checkout

0

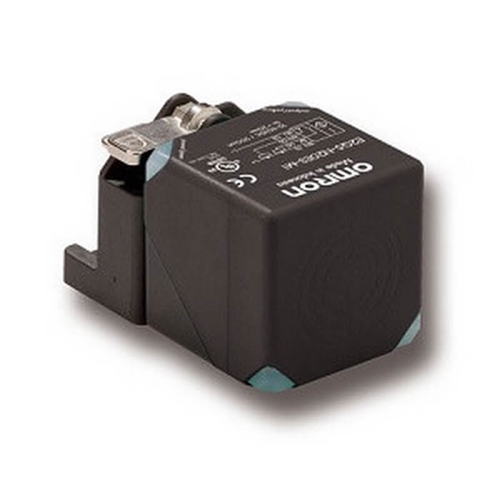

E2Q5-N20F1-M1









































Brand:Omron
Product Type:Inductive Proximity Switch
Manf. Part No.:E2Q5-N20F1-M1
Width Sensor:40mm
Height of Sensor:67mm
Length of Sensor:60mm
Sensor Diameter:40mm
Mounting Style:Other
Switching Distance:20mm
Suitable for Safety Functions:No
Switch Function:Normally Open
Type of Switching Output:PNP
Electrical Connection:Other
No. of Semiconductor Outputs with Signalling Function:1
No. of Contact Energized Outputs with Signalling Function:0
No. of Protected Semiconductor Outputs:0
No. of Protected Contact Energized Outputs:0
Actuation Type:Metallic Target
Type of Interface:None
Type of Interface for Safety Communication:None
Housing Construction:Special construction
Housing Coating:Other
Cascadable:Yes
Category According to EN 954-1:B
SIL According to IEC 61508:None
Performance Level acc. to EN ISO 13849-1:Level a
Max. Output Current at Protected Output:200mA
Supply Voltage:10V - 30V
Rated Control Voltage Us at AC 50HZ:
Rated Control Voltage Us at AC 60HZ:
Rated Control Voltage Us at DC:10V - 30V
Voltage Type:DC
Switching Frequency:150Hz
Monitoring Function for ownstream Switching Devices:No
Housing Material:Plastic
Compression Resistant:No
Explosion Safety Category for Gas:None
Explosion Safety Category for Dust:None
GTIN:04547648332064

No extended details available.
No documents available.
