E2EX2Y1M1

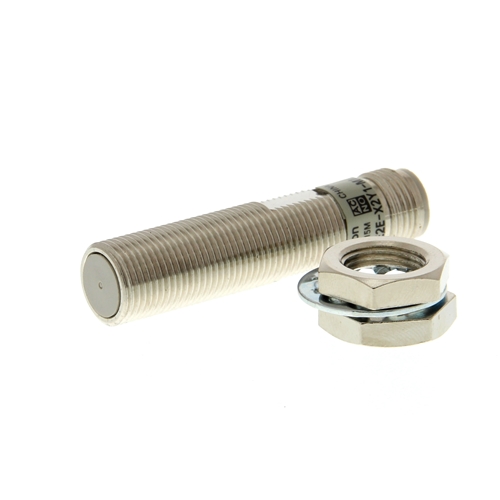

OMRON PROXIMITY SENSOR INDUCTIVE M12 SHIELDED 2MM

AC 2-WIRE N/O M12 CONNECTOR

Omron

Your cart total:

.

Checkout

0

E2E-X2Y1-M1








































Brand:Omron
Product Type:Inductive Proximity Switch
Manf. Part No.:E2E-X2Y1-M1
Width Sensor:12mm
Height of Sensor:12mm
Length of Sensor:30mm
Sensor Diameter:12mm
Mounting Style:Other
Switching Distance:2mm
Suitable for Safety Functions:No
Switch Function:Normally Open
Type of Switching Output:Two-wire
Electrical Connection:Connector M12
No. of Semiconductor Outputs with Signalling Function:1
No. of Contact Energized Outputs with Signalling Function:0
No. of Protected Semiconductor Outputs:0
No. of Protected Contact Energized Outputs:0
Actuation Type:Metallic Target
Type of Interface:None
Type of Interface for Safety Communication:None
Housing Construction:Cylinder, screw-thread
Housing Coating:Other
Cascadable:Yes
Category According to EN 954-1:B
SIL According to IEC 61508:None
Performance Level acc. to EN ISO 13849-1:Level a
Max. Output Current at Protected Output:100mA
Supply Voltage:24V - 240V
Rated Control Voltage Us at AC 50HZ:24V - 240V
Rated Control Voltage Us at AC 60HZ:24V - 240V
Voltage Type:AC
Switching Frequency:25Hz
Monitoring Function for ownstream Switching Devices:No
Housing Material:Metal
Compression Resistant:No
Explosion Safety Category for Gas:None
Explosion Safety Category for Dust:None
GTIN:04547648405256

No extended details available.
No documents available.
