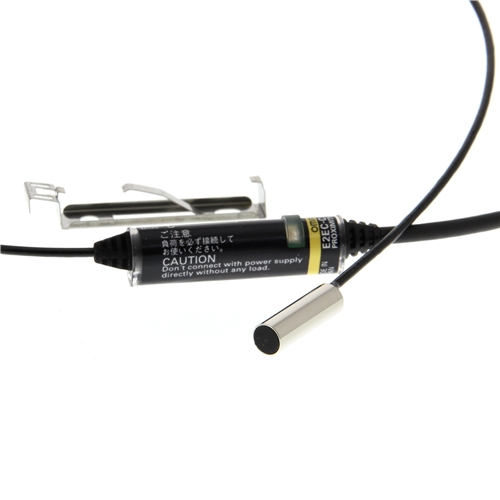

E2ECC1R5D1


OMRON Proximity sensor, compact in-line.

5.4mm dia, DC-2wire, NO, 2m cable.

Omron

Your cart total:

.

Checkout

0

E2EC-C1R5D1







































Brand:Omron
Product Type:Inductive Proximity Switch
Manf. Part No.:E2EC-C1R5D1
Length of Sensor:18mm
Sensor Diameter:5.4mm
Mounting Style:Concise
Switching Distance:1.5mm
Suitable for Safety Functions:No
Switch Function:Normally Open
Type of Switching Output:Two-wire
Electrical Connection:Cable
No. of Semiconductor Outputs with Signalling Function:1
No. of Contact Energized Outputs with Signalling Function:0
No. of Protected Semiconductor Outputs:0
No. of Protected Contact Energized Outputs:0
Actuation Type:Metallic Target
Type of Interface:None
Type of Interface for Safety Communication:None
Housing Construction:Cylinder, screw-thread
Housing Coating:Other
Cascadable:Yes
Category According to EN 954-1:B
SIL According to IEC 61508:None
Performance Level acc. to EN ISO 13849-1:Level a
Max. Output Current at Protected Output:100mA
Supply Voltage:10V - 30V
Rated Control Voltage Us at AC 50HZ:
Rated Control Voltage Us at AC 60HZ:
Rated Control Voltage Us at DC:12V - 24V
Voltage Type:DC
Switching Frequency:1500Hz
Monitoring Function for ownstream Switching Devices:No
Housing Material:Metal
Compression Resistant:No
Explosion Safety Category for Gas:None
Explosion Safety Category for Dust:None
GTIN:04536853257514

No extended details available.
