E2AM30KN20M1C1


OMRON PROX. SENSOR INDUCTIVE NICKEL-BRAS

SHORT BODY M30 UNSHIELDED DC 3 WIRE M12 PLUG IN

Omron

Your cart total:

.

Checkout

0

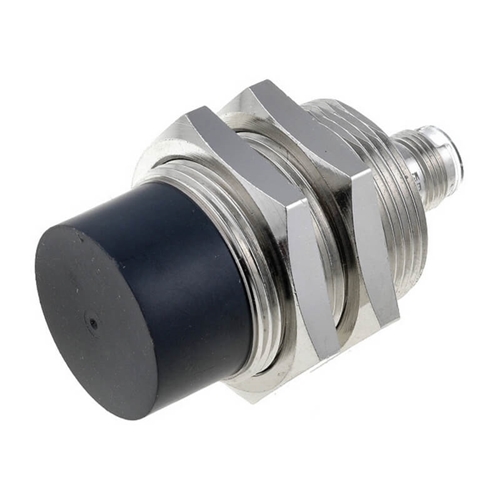

E2A-M30KN20-M1-C1









































Brand:Omron
Product Type:Inductive Proximity Switch
Manf. Part No.:E2A-M30KN20-M1-C1
Width Sensor:30mm
Height of Sensor:30mm
Length of Sensor:58mm
Sensor Diameter:30mm
Mounting Style:Concise
Switching Distance:20mm
Suitable for Safety Functions:No
Switch Function:Normally Open
Type of Switching Output:NPN
Electrical Connection:Connector M12
No. of Semiconductor Outputs with Signalling Function:1
No. of Contact Energized Outputs with Signalling Function:0
No. of Protected Semiconductor Outputs:0
No. of Protected Contact Energized Outputs:0
Actuation Type:Metallic Target
Type of Interface:None
Type of Interface for Safety Communication:None
Housing Construction:Cylinder, screw-thread
Housing Coating:Other
Cascadable:Yes
Category According to EN 954-1:B
SIL According to IEC 61508:None
Performance Level acc. to EN ISO 13849-1:Level a
Max. Output Current at Protected Output:200mA
Supply Voltage:10V - 32V
Rated Control Voltage Us at AC 50HZ:
Rated Control Voltage Us at AC 60HZ:
Rated Control Voltage Us at DC:12V - 24V
Voltage Type:DC
Switching Frequency:100Hz
Monitoring Function for ownstream Switching Devices:No
Housing Material:Metal
Compression Resistant:No
Explosion Safety Category for Gas:None
Explosion Safety Category for Dust:None
GTIN:04536854939112

No extended details available.
