E2AM12LS04M1B2

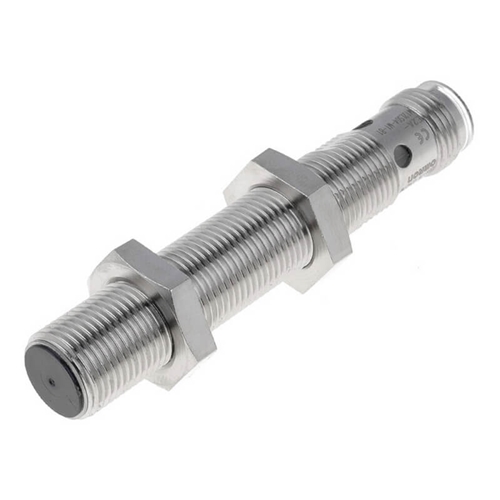

OMRON PROXIMITY SENSOR INDUCTIVE NICKEL

BRASS LONG BODY M12 SHIELDED SN=4MM DC 3 -WIRE PNP N/O M12

Omron

Your cart total:

.

Checkout

0

E2A-M12LS04-M1-B2









































Brand:Omron
Product Type:Inductive Proximity Switch
Manf. Part No.:E2A-M12LS04-M1-B2
Width Sensor:12mm
Height of Sensor:12mm
Length of Sensor:70mm
Sensor Diameter:12mm
Mounting Style:Concise
Switching Distance:4mm
Suitable for Safety Functions:No
Switch Function:Normally Closed
Type of Switching Output:PNP
Electrical Connection:Connector M12
No. of Semiconductor Outputs with Signalling Function:1
No. of Contact Energized Outputs with Signalling Function:0
No. of Protected Semiconductor Outputs:0
No. of Protected Contact Energized Outputs:0
Actuation Type:Metallic Target
Type of Interface:None
Type of Interface for Safety Communication:None
Housing Construction:Cylinder, screw-thread
Housing Coating:Other
Cascadable:Yes
Category According to EN 954-1:B
SIL According to IEC 61508:None
Performance Level acc. to EN ISO 13849-1:Level a
Max. Output Current at Protected Output:200mA
Supply Voltage:12V - 24V
Rated Control Voltage Us at AC 50HZ:
Rated Control Voltage Us at AC 60HZ:
Rated Control Voltage Us at DC:12V - 24V
Voltage Type:DC
Switching Frequency:1000Hz
Monitoring Function for ownstream Switching Devices:No
Housing Material:Metal
Compression Resistant:No
Explosion Safety Category for Gas:None
Explosion Safety Category for Dust:None
GTIN:04536854950513

No extended details available.
